User’s Manual of IGS-10020MT
2.2.2 DIN-Rail Mounting
This section describes how to install the Industrial Managed Switch.
There have two methods to install the Industrial Managed Switch. DIN-Rail Mounting and Wall Mount Plate Mounting. Please
read the following topics and perform the procedures in the order being presented.

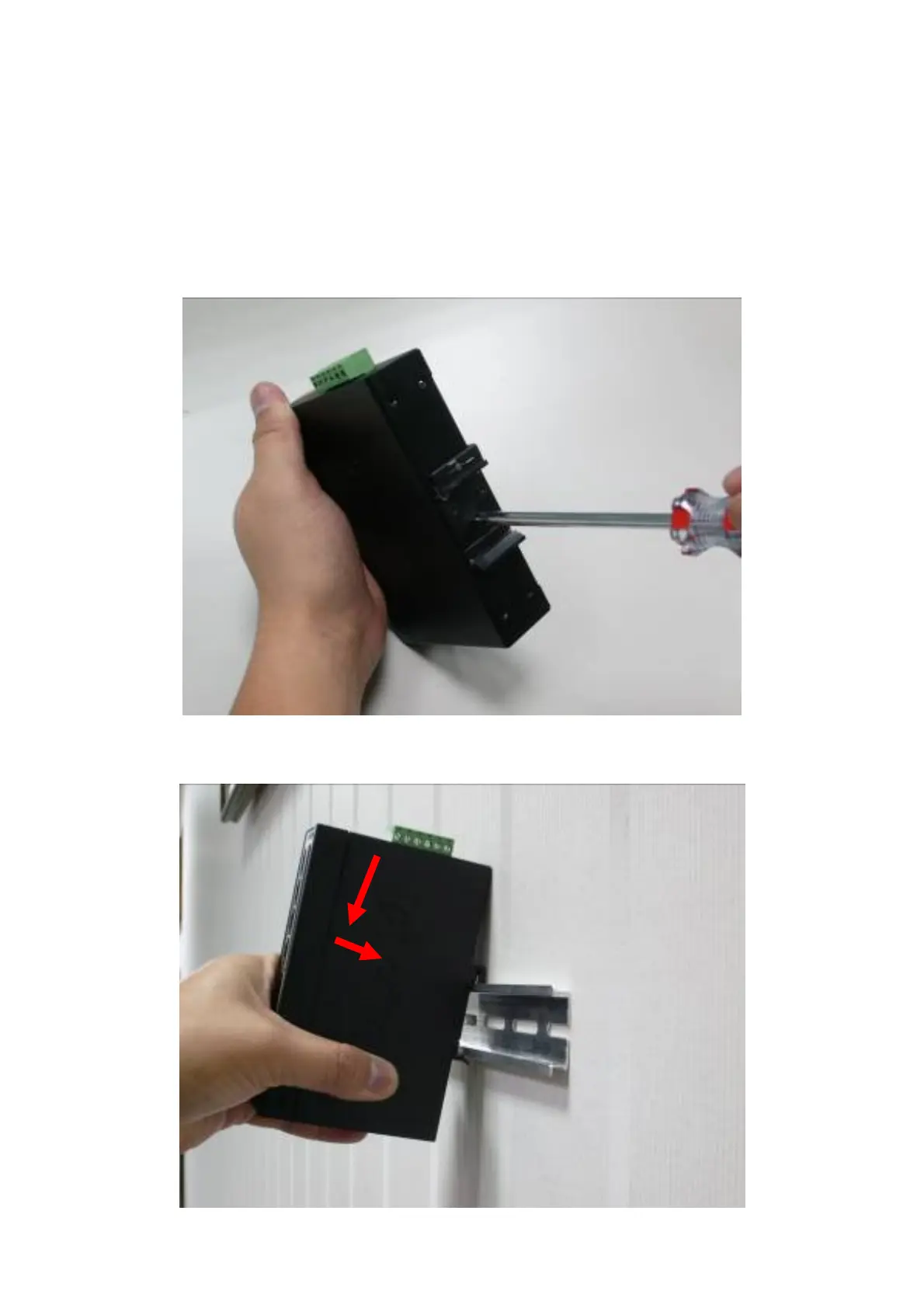

Step 1: Screw the DIN-Rail on the Industrial Managed Switch.
Step 2: Lightly press the button of DIN-Rail into the track.
34
