User’s Manual of IGS-10020MT
2.1.4 Switch Upper Panel
The Upper Panel of the Industrial Managed Switch indicates a DC inlet power socket and consist one terminal block
connector within 6-contacts. It accepts input power from 12 to 48V DC, also AC 24V.

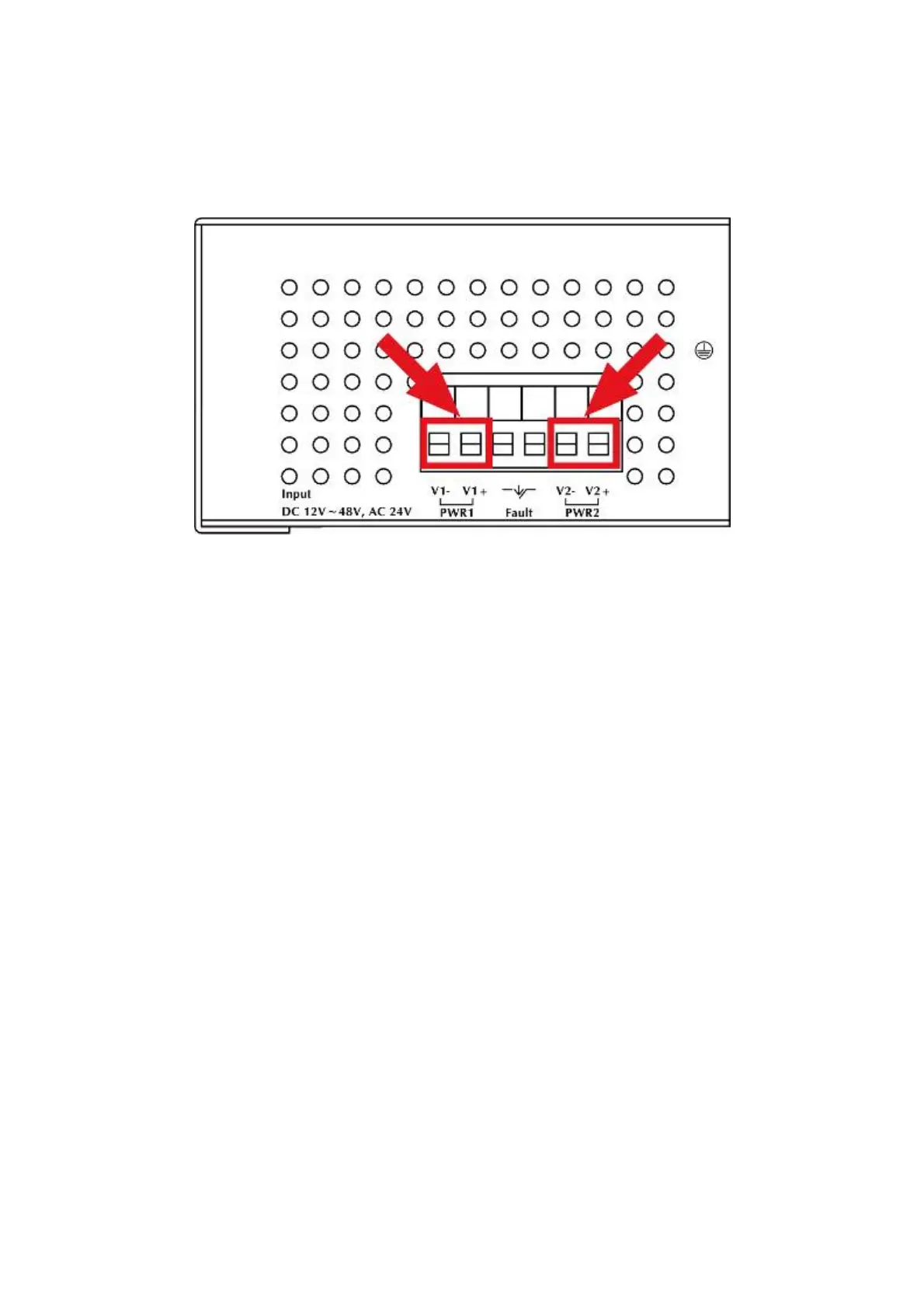

Figure 2-3: IGS-10020MT Upper Panel
32
