User’s Manual of IGS-10020MT
 Priority
Priority is the Layer 2 priority to be used for the specified application type.One of
eight priority levels (0 through 7)
 DSCP
DSCP is the DSCP value to be used to provide Diffserv node behavior for the
specified application type as defined in IETF RFC 2474. Contain one of 64 code
point values (0 through 63).
 Auto-negotiation
Auto-negotiation identifies if MAC/PHY auto-negotiation is supported by the link
partner.
 Auto-negotiation
status
Auto-negotiation status identifies if auto-negotiation is currently enabled at the
link partner. If Auto-negotiation is supported and Auto-negotiation status is
disabled, the 802.3 PMD operating mode will be determined the operational MAU
type field value rather than by auto-negotiation.
 Auto-negotiation
Capabilities
Auto-negotiation Capabilities shows the link partners MAC/PHY capabilities.
Buttons
Auto-refresh
: Check this box to refresh the page automatically. Automatic refresh occurs every 3 seconds.
: Click to refresh the page immediate.

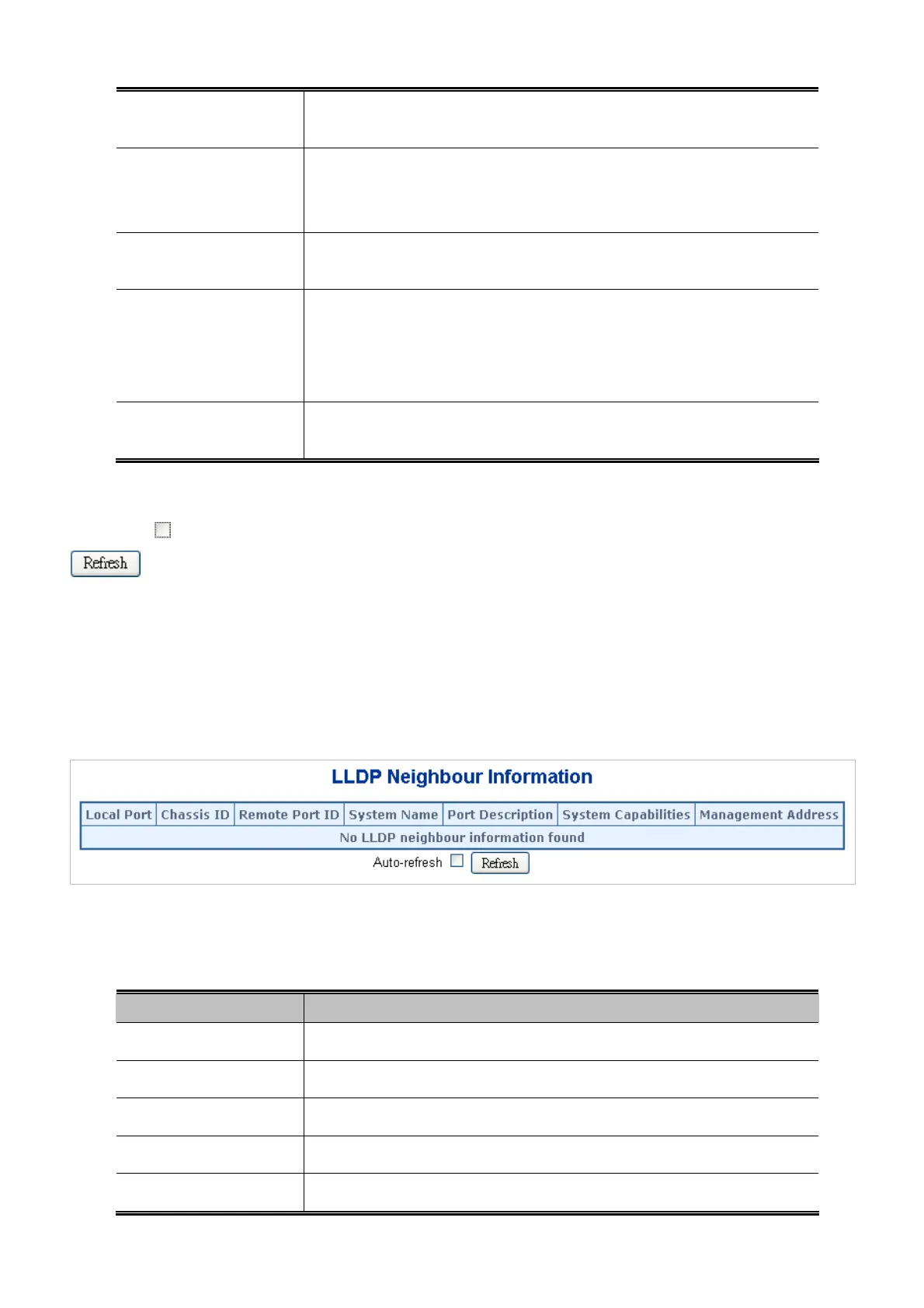

4.14.5 Neighbor
This page provides a status overview for all LLDP neighbors. The displayed table contains a row for each port on which an
LLDP neighbor is detected. The LLDP Neighbor Information screen in Figure 4-14-4 appears.
Figure 4-14-4: LLDP Neighbor Information Page Screenshot
The page includes the following fields:
Object Description
 Local Port
The port on which the LLDP frame was received.
 Chassis ID
The Chassis ID is the identification of the neighbor's LLDP frames.
 Remote Port ID
The Remote Port ID is the identification of the neighbor port.
 System Name
System Name is the name advertised by the neighbor unit.
 Port Description
Port Description is the port description advertised by the neighbor unit.
311
