2.2.3 Wall Mount Plate Mounting
To install the Industrial Managed Switch on the wall. Please follow the instructions below.
Step 1: Remove the DIN-Rail from the Industrial Managed Switch. Use the screwdriver to loose the screws and remove the
DIN-Rail.
Step 2: Place the wall mount plate on the rear panel of the Industrial Managed Switch.

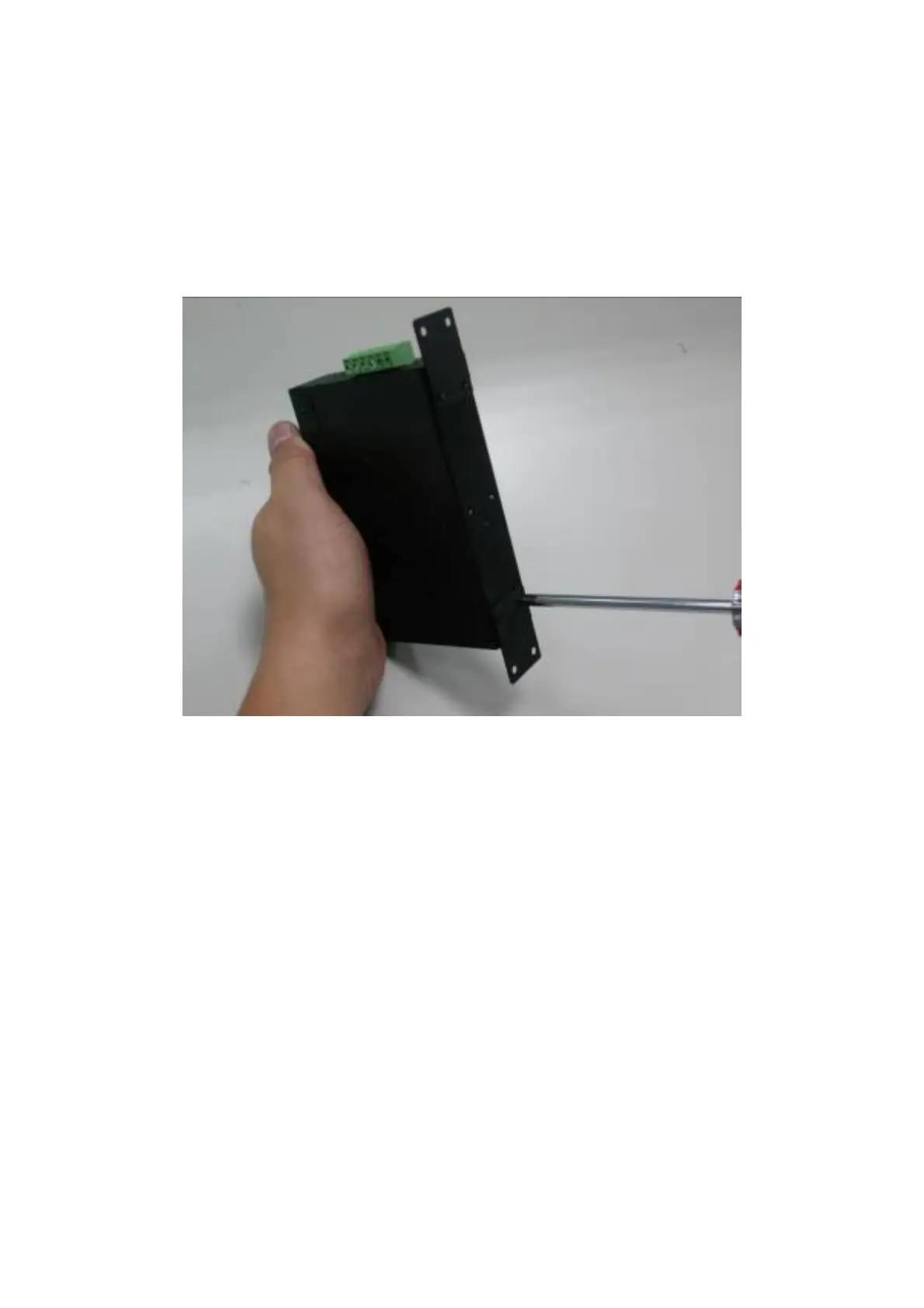

Step 3: Use the screwdriver to screw the wall mount plate on the Industrial Managed Switch.
Step 4: Use the hook holes at the corners of the wall mount plate to hang the Industrial Managed Switch on the wall.
Step 5: To remove the wall mount plate, reverse steps above.
