Chapter 6: Maintenance
209

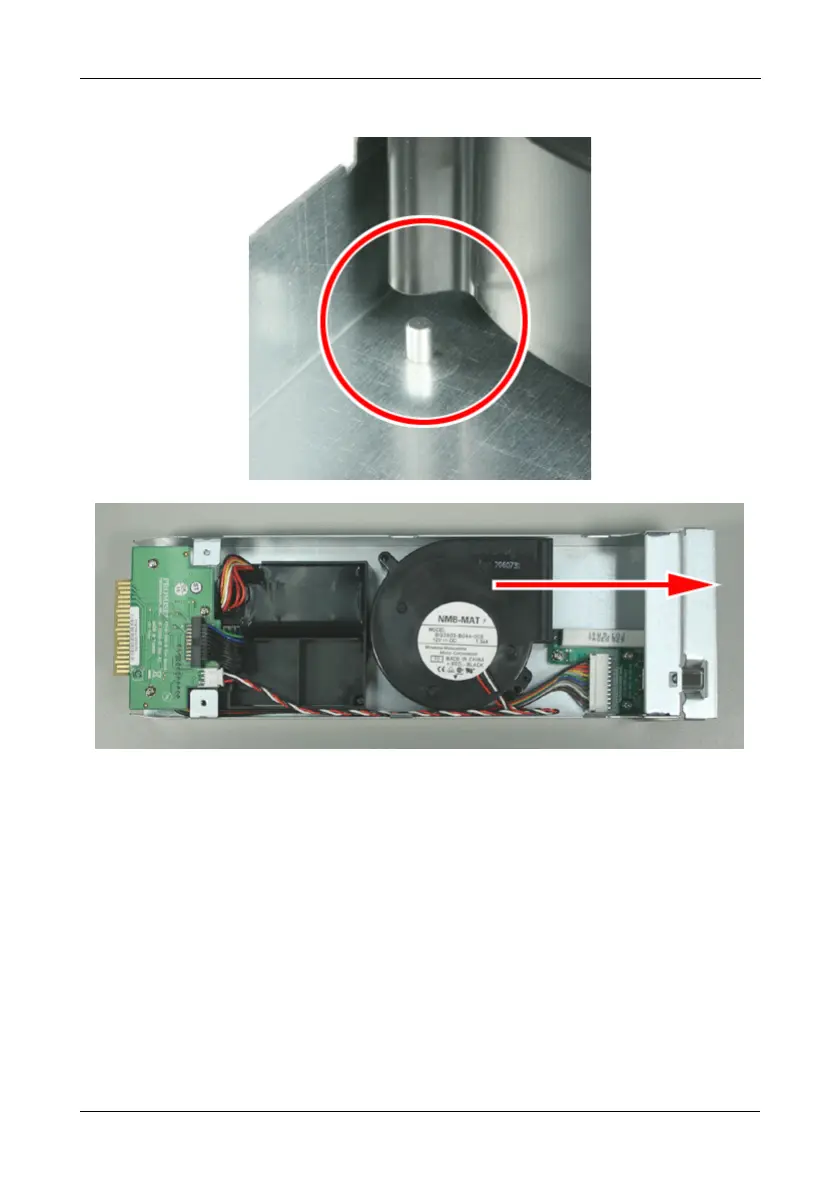

Figure 11. Position the blower onto the mounting pins, pointed outward
Be sure the fan points outward, towards the handle.
8. Place the top section of the cooling unit onto the bottom section and tighten
the thumbscrews.
9. Carefully slide the cooling unit into the enclosure.
10. Gently press the handle in and upward until it locks.
See Figure 12.
