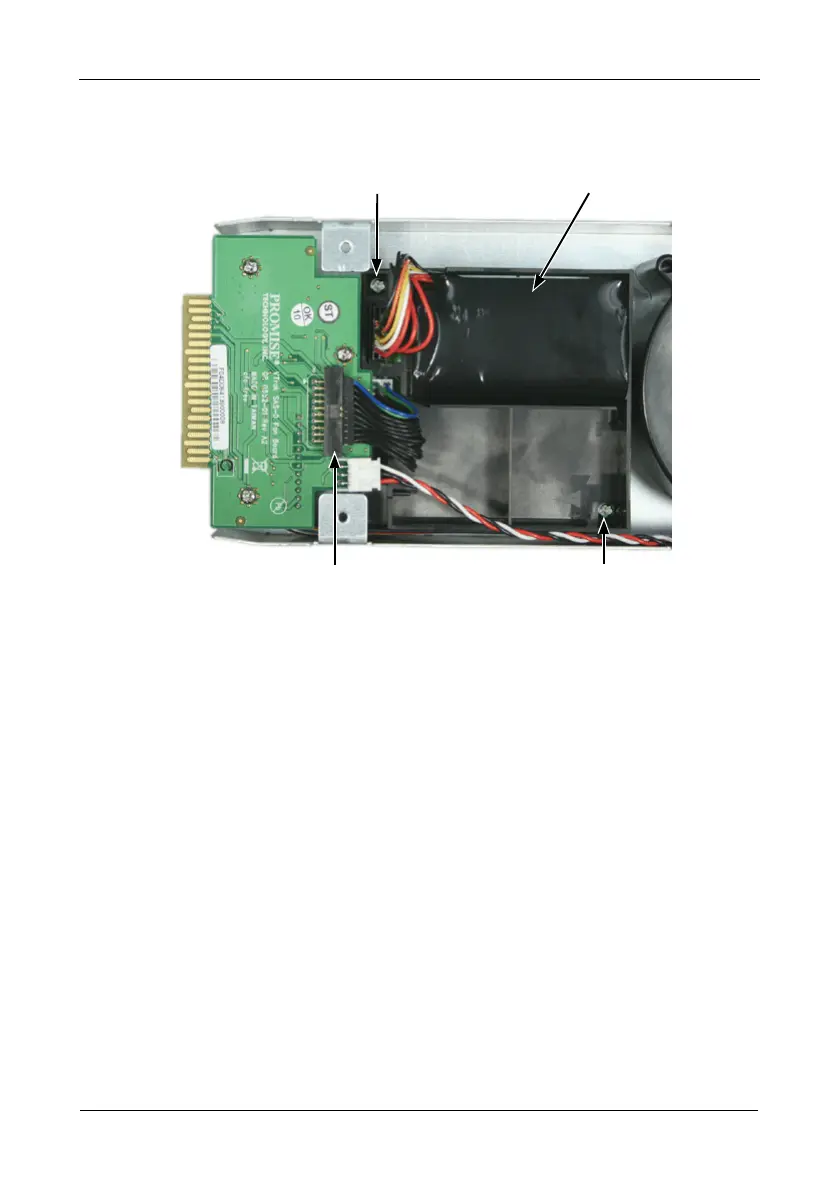

Figure 19.Removing the battery assembly screws and detaching the
connector (M310i/M210i)
7. Lift the battery assembly out of the cooling unit.
8. Place a new battery assembly into the cooling unit.
9. Attach the connector on the circuit board.
10. Install the two screws holding the battery assembly in place to the cooling
unit.
11. Place the top section of the cooling unit onto the bottom section and tighten
the thumbscrews.
12. Carefully slide the cooling unit into the enclosure.
13. Gently press the handle in and upward until it locks. See Figure 20.
Remove this screw
Remove this screw
(2-cell battery only)
Detach this connector
Battery Assembly
