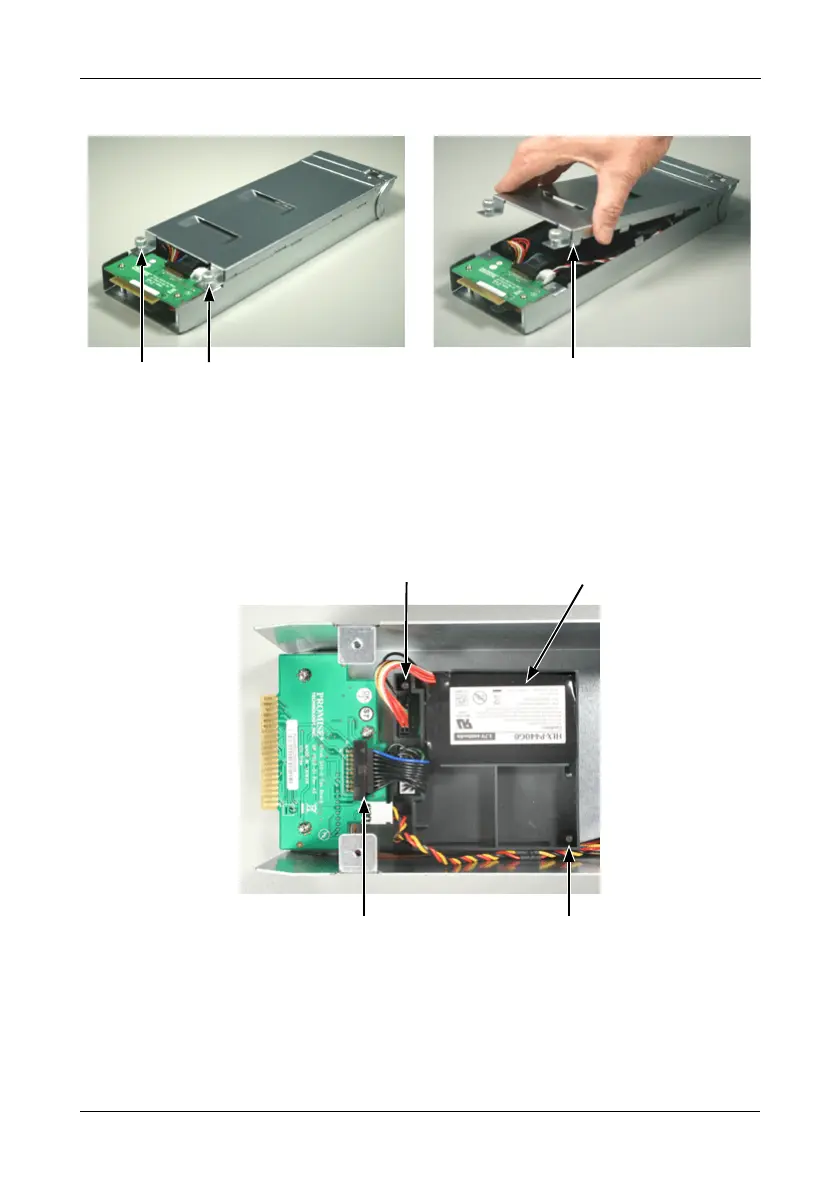

Figure 17.Loosen the thumbscrews and remove the cover (M310i/m210I)
5. Remove the two screws holding the battery assembly in place.
6. Detach the connector on the circuit board.
Do not detach any other connectors. See Figures 18 and 19.
Figure 18. Removing the battery assembly screws and detaching the
connector (M610i)
Loosen the thumbscrews
Lift the cover
Remove this screw
Remove this screwDetach this connector
Battery Assembly
