Rotor Drive Setting
The Service Configuration Menu, shown below, displays the current tube
rotor drive setting. The tube rotor drive setting is pre-set at the factory and
normally should not be changed (unless replacement of tube with different
type). If you need to change the tube rotor drive setting, proceed as follows:

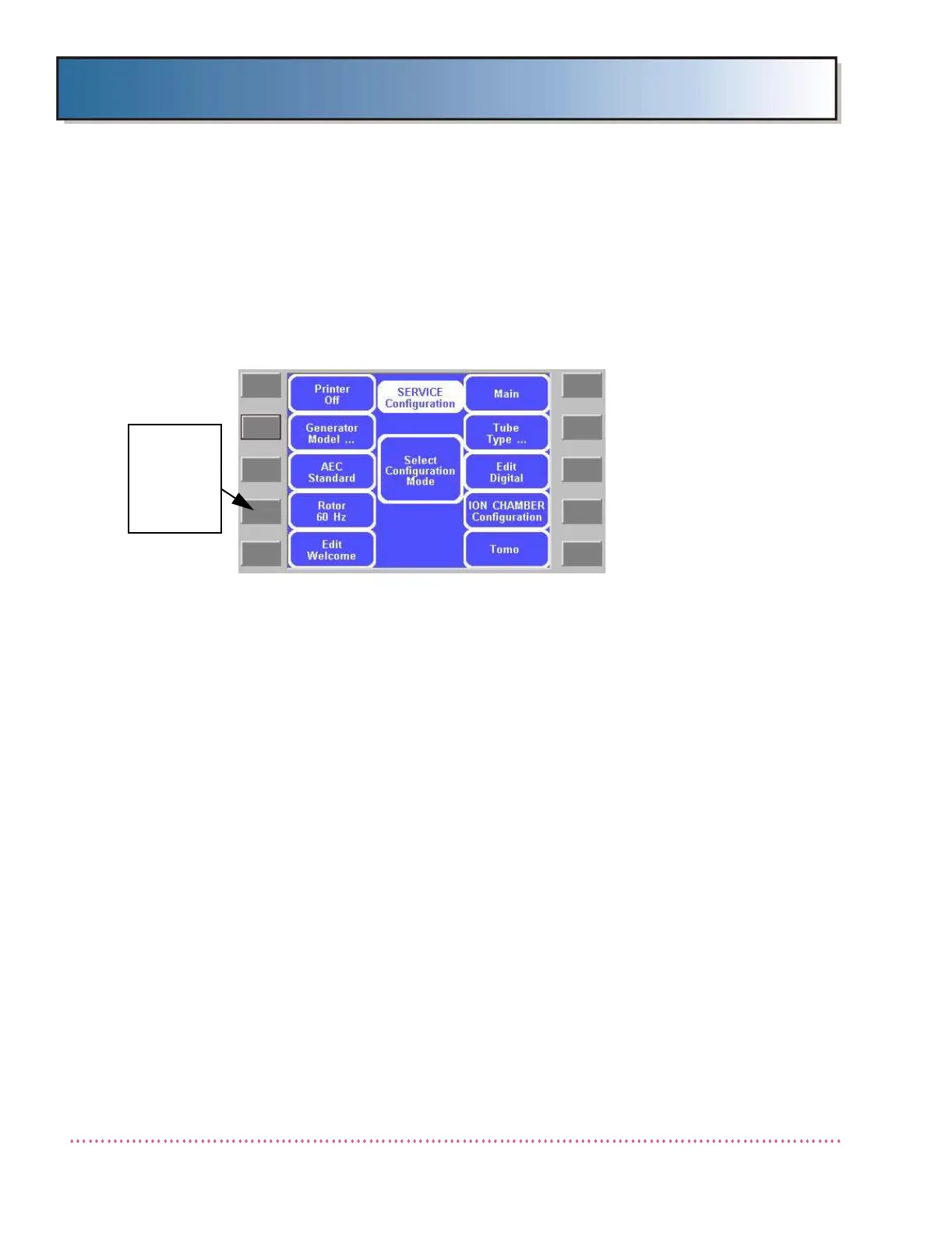

Figure 3-7. Rotor Drive Configuration Menu
1. Press the key located next to the Rotor field to scroll through the avail-
able rotor drive settings (60 Hz, 50 Hz, QMI HSS, or AID HSS).
2. To exit the screen and return to the Service Menu, press the key next to
the Main field.
NOTE: On systems equipped with high-speed
starter option (HSS), tube "high-speed" mode will
only be activated when selected exposure factors
exceed the limits used for low-speed operation.
PRESS
THIS KEY
TO SELECT
ROTOR
DRIVE
