Quantum ODYSSEY HF Series User Manual

Appendix D Calibration (Using Generator Service Tools)
Revision W HF Series X-ray Generators - Service Manual
D-18 Quantum Medical Imaging, LLC
Ion Chambers Tab

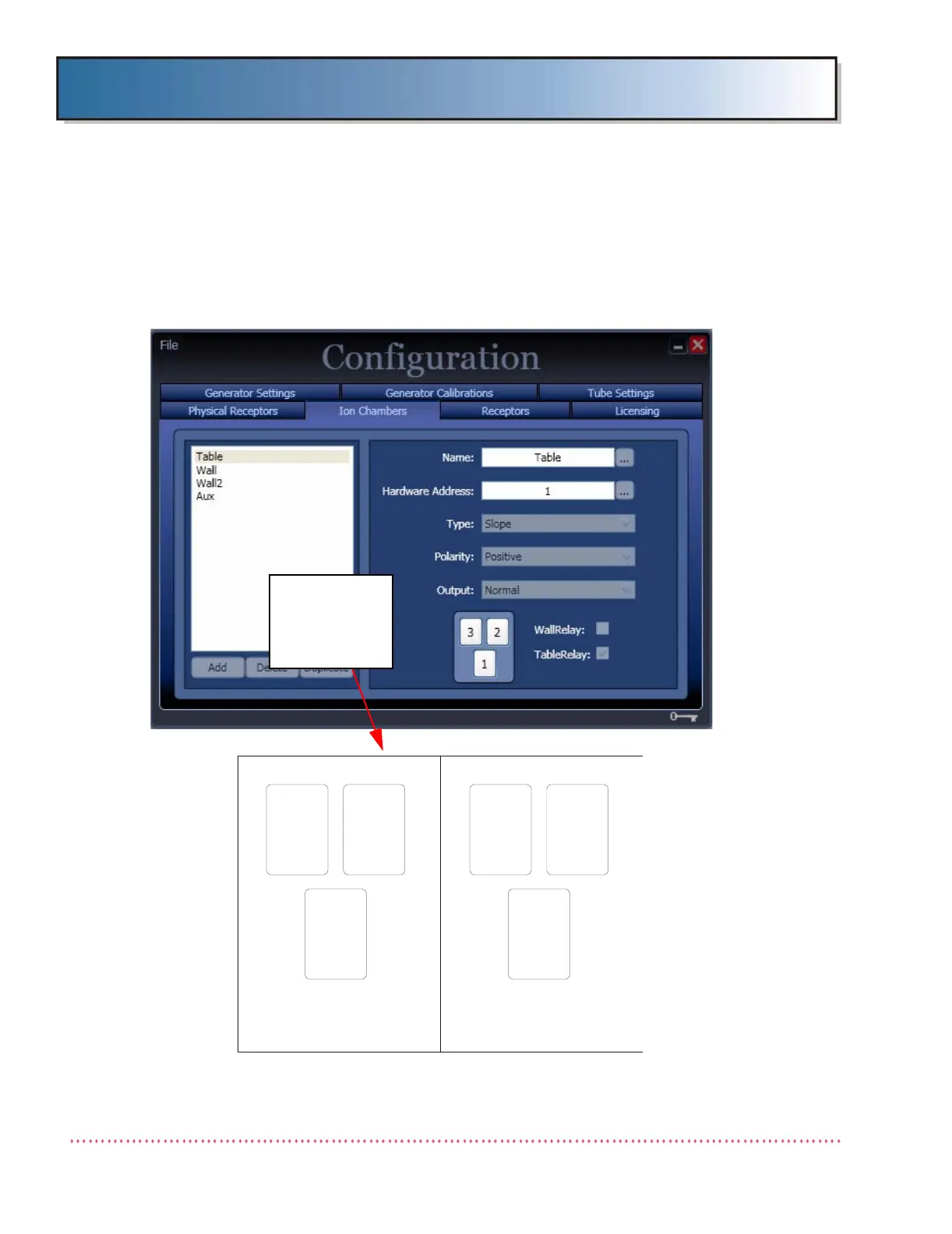

The Ion Chambers Tab (see Figure D-9), displays available ion chambers
interfaced to the HF Series X-ray generator, including configuration settings
for each.
Figure D-9. Configuration Menu - Ion Chambers Tab
DEFAULT RIGHT LOAD
DETECTOR ASSIGNMENTS
AC
B
23
1
DEFAULT LEFT LOAD
DETECTOR ASSIGNMENTS
AC
B
32
1
PRESS THESE
BUTTONS TO
CONFIGURE
DETECTORS AS
SHOWN BELOW
