Quantum ODYSSEY HF Series User Manual

Appendix B Calibration (DiRex System)
HF Series X-ray Generators - Service Manual Revision W
Quantum Medical Imaging, LLC B-9

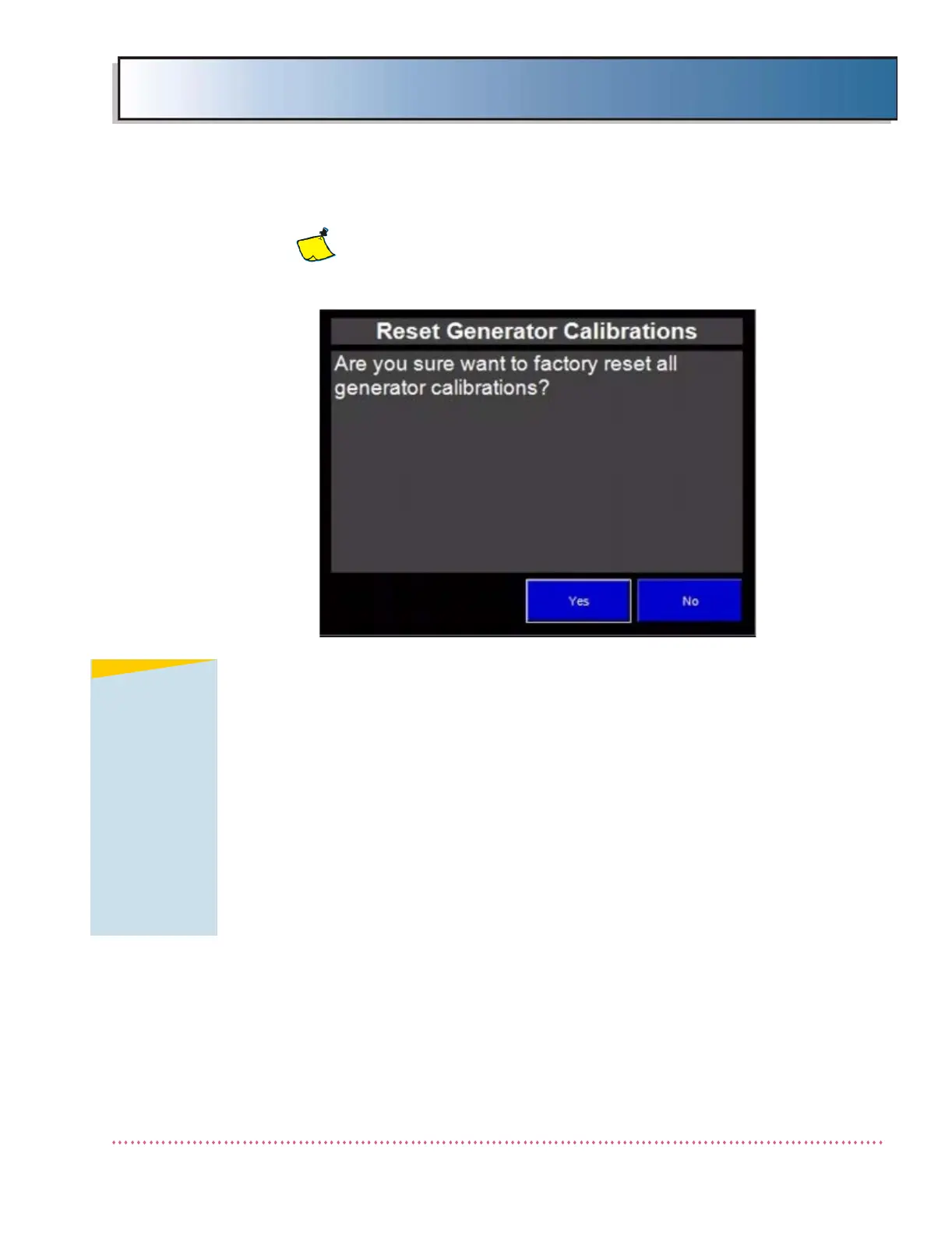

Note: The Reset Generator Calibrations pop-up
screen is shown in the sample screen below. The
Reset AEC calibrations pop-up screen (not shown)
is similar in operation.
Figure B-5. Reset Calibrations Screen (Typical)
2. Press Yes to continue with reset, press No to cancel reset. The system
returns to the Factory Reset Menu (Figure 3-4).
Backup Configuration Utility
The Backup Configuration utility saves the current configuration settings and
calibration data in a "backup file". This data can later be restored back to the
generator following factory reset, thereby eliminating the need to re-calibrate
the generator. However, re-verification of calibration is required.
To create a backup configuration file, press the Save button corresponding
with "Backup Configuration" shown in Figure 3-4. The system overwrites
existing backup data with current system data and updates the backup date
and time fields appearing on the Factory Reset Menu.
NOTE
Following a
Factory Reset,
the KV,
filament, mA
and AEC (if
equipped)
Calibration
procedures,
described in
this chapter,
must be
performed.
