between 50% up to 100% in 10% increments. Note: At 100% setting,
the heat alarm is effectively disabled. Move the slide control adjacent to
the Heat Warning field to select the percentage of the total tube heat
capacity at which alarm activation will occur.
Physical Receptors Tab
The Physical Receptors Tab (see below) is used to configure the number, type
and identification of connected receptors
(contains only factory-authorized
settings, not field configurable)
.

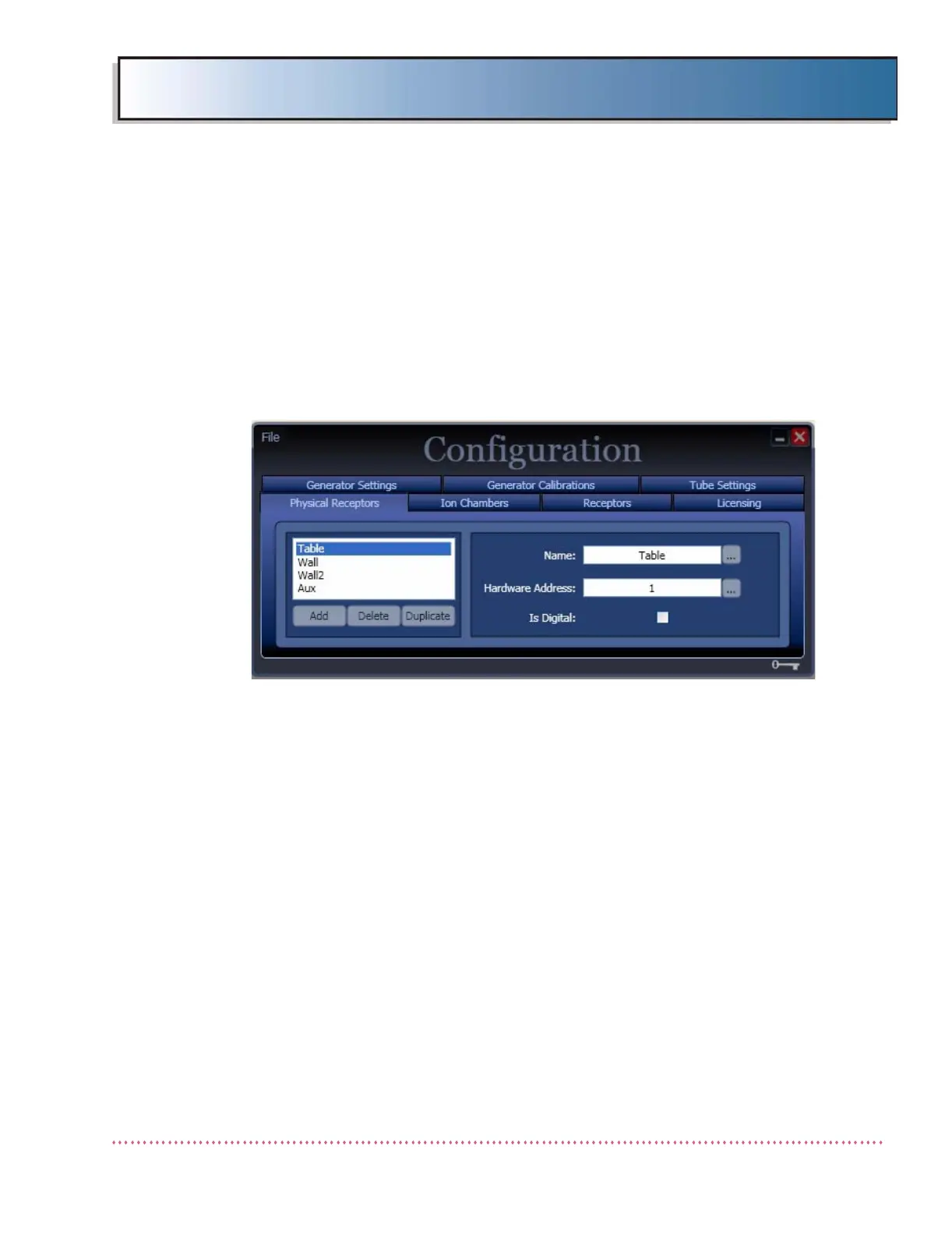

Figure D-7. Configuration Menu - Physical Receptors Tab
