Quantum ODYSSEY HF Series User Manual

Chapter 2 Assembly & Installation
HF Series X-ray Generators - Service Manual Revision W
Quantum Medical Imaging 2-43
OCP Wall Mounting (QG-WM Option)

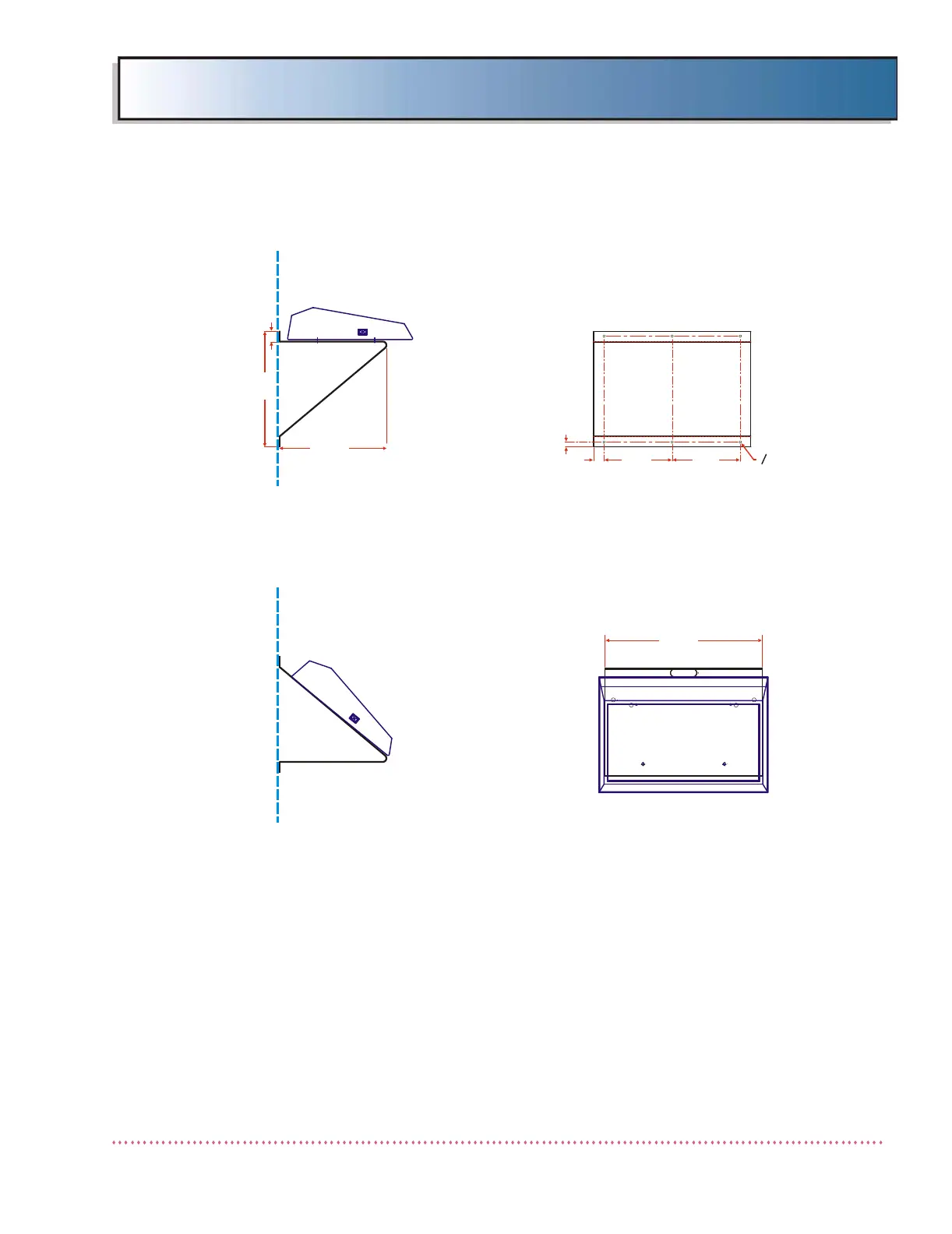

Figure 2-24. QG-WM Wall Mount Option Installation Configurations
On systems equipped with Wall Mounting option QG-WM, mount the OCP to
the wall as follows:
1. Secure the Wall Mount to the wall using hardware suitable for wall con-
struction type (each screw capable of supporting 15 lbs. pull load).
2. Turn the OCP over and rest it on a surface covered with soft material.
3. Remove four (4) OCP front panel screws.
4. Turn over the OCP. Lift up OCP front panel (if necessary, insert a small
flat blade screwdriver under the edge of the panel, in the upper left side,
and lift up panel) to access OCP mounting holes.
MOUNTING CONFIGURATION A
(SIDE VIEW)
MOUNTING CONFIGURATION B
(SIDE VIEW)
1.00
11.01
10.25
(REAR VIEW)
6.50
O.203 THRU
6X
6.50
1.00
.44
2X
(TOP VIEW)
15.00
(DIMENSIONS SHOWN
IN INCHES)
