Chapter 5 Service Instructions
Revision W HF Series X-ray Generators - Service Manual
5-56 Quantum Medical Imaging, LLC
Accessing Service Reports - Q-VISION Operator Control Panel
The following instructions apply to generators utilizing a Q-VISION opera-
tor control panel (OCP). The two types of service reports/utilities available
on systems equipped with a Q-VISION OCP are:
• Statistics Report
• Error Log Viewer utility
Below is a description of how each is accessed, and what information is
provided in each report.
Statistics Report
1. To gain access to the Generator Service programs,
touch the Help button located on the lower right corner
of the Q-VISION screen (shown on right). The Genera-
tor Help Services Screen (Figure 5-5a) appears:

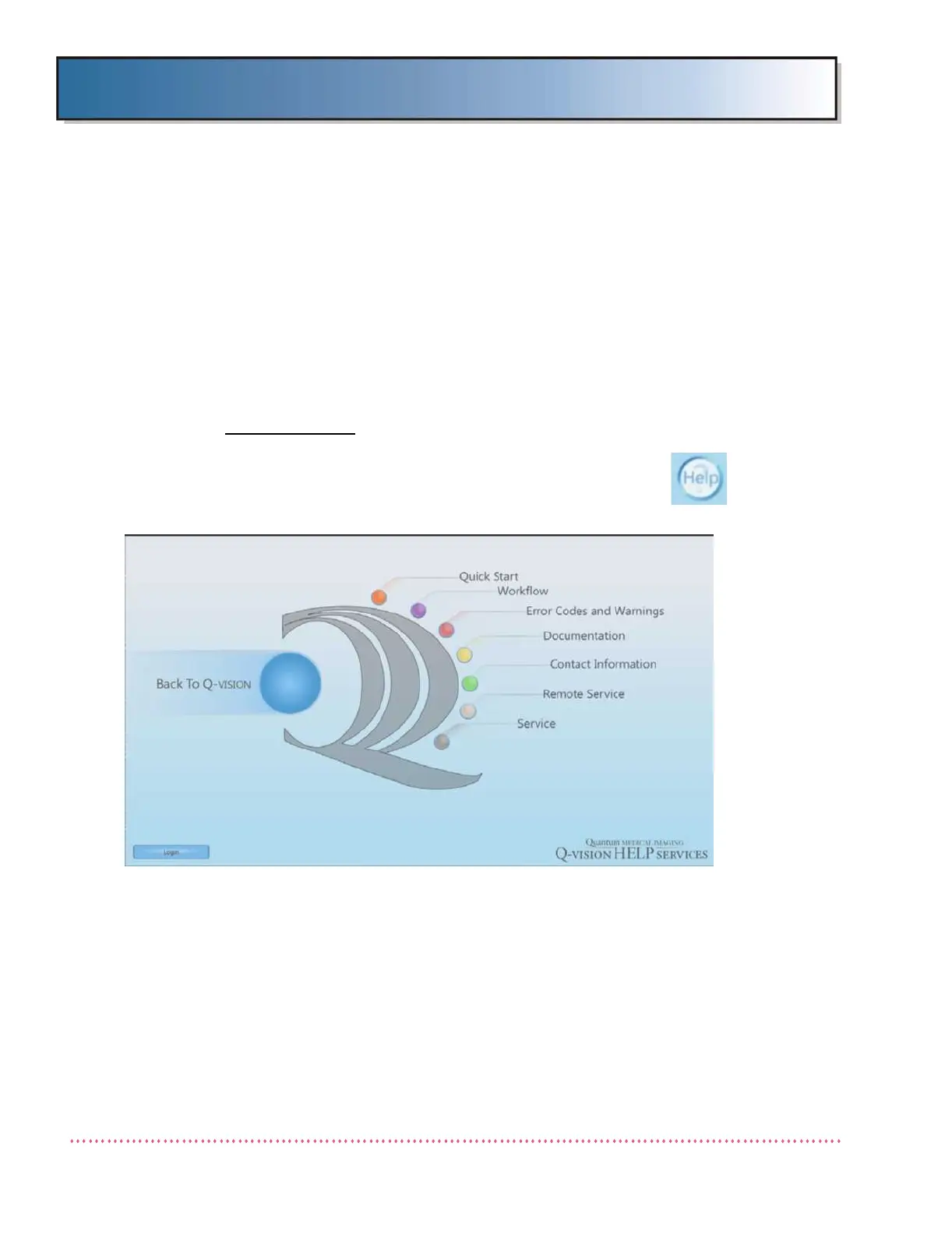

Figure 5-5a. Generator Help Services Screen
To Next Page
