Appendix B Calibration (DiRex System)
HF Series X-ray Generators - Service Manual Revision W
Quantum Medical Imaging, LLC B-25
GENERATOR CALIBRATION
CAUTION! Before calibrating unit, perform warm-up
procedures recommended by tube manufacturer or
the warm-up procedure described in Chapter 3 of the
Operator’s Manual.
WARNING! The following calibration procedures
involve taking x-ray exposures. All personnel
should be behind protective barriers during expo-
sure. X-rays can be dangerous unless proper pre-
cautions and procedures are adhered to.
To access the generator calibration functions, press the button next to the Cali-
bration field in the Service Options Menu (see Figure 3-3). The Calibration menu
displays, shown below:

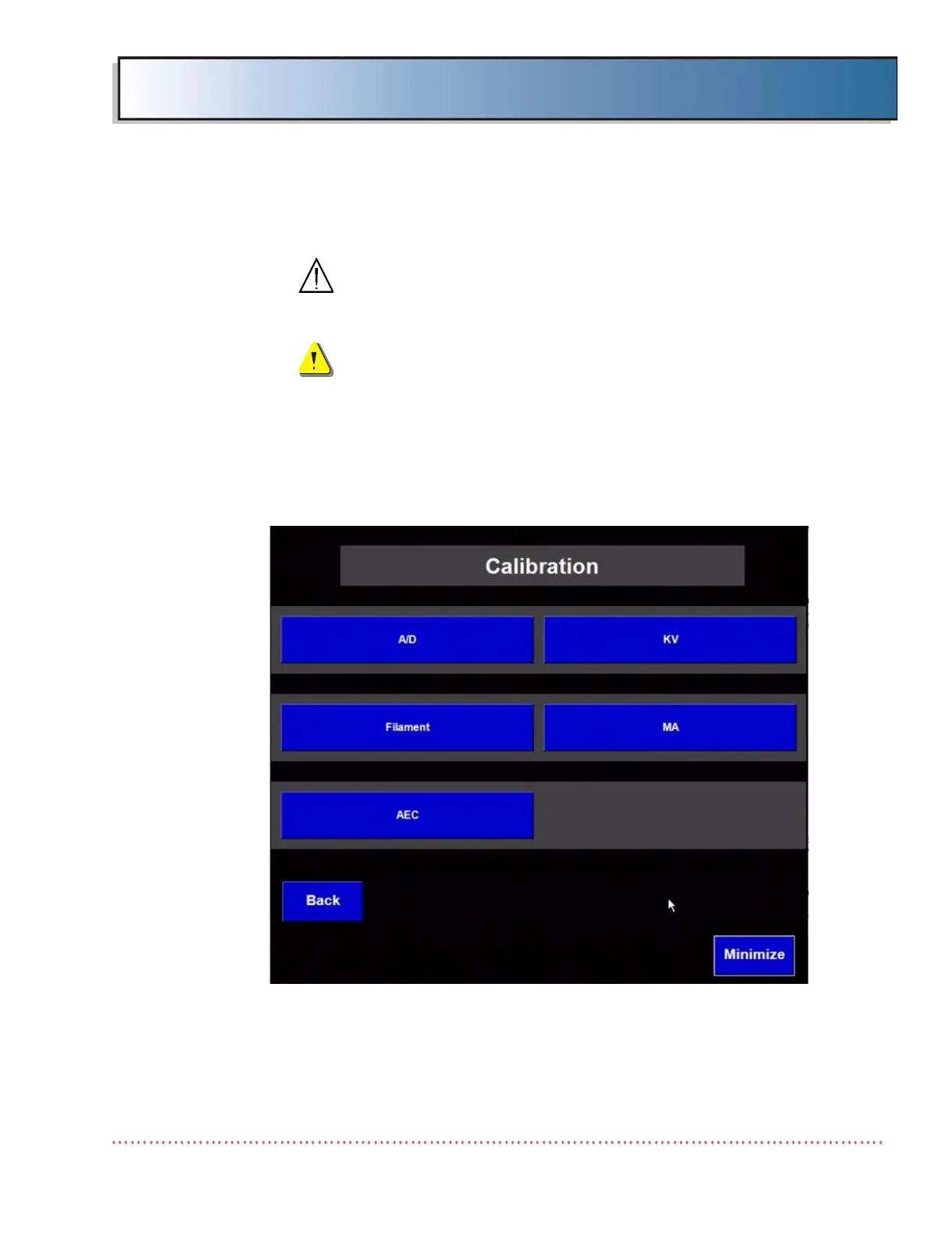

Figure B-16. Calibration Menu
The Calibration menu provides access to the system's various calibration func-
tions. The generator was pre-calibrated at the factory, however, the system will
need to be re-calibrated to assure proper operation, verify compliance and set

Table of Contents
