Quantum ODYSSEY HF Series User Manual

Appendix D Calibration (Using Generator Service Tools)
HF Series X-ray Generators - Service Manual Revision W
Quantum Medical Imaging, LLC D-13
Generator Calibrations Tab
Selecting the Generator Calibrations tab on the Configuration Menu displays
the following screen:

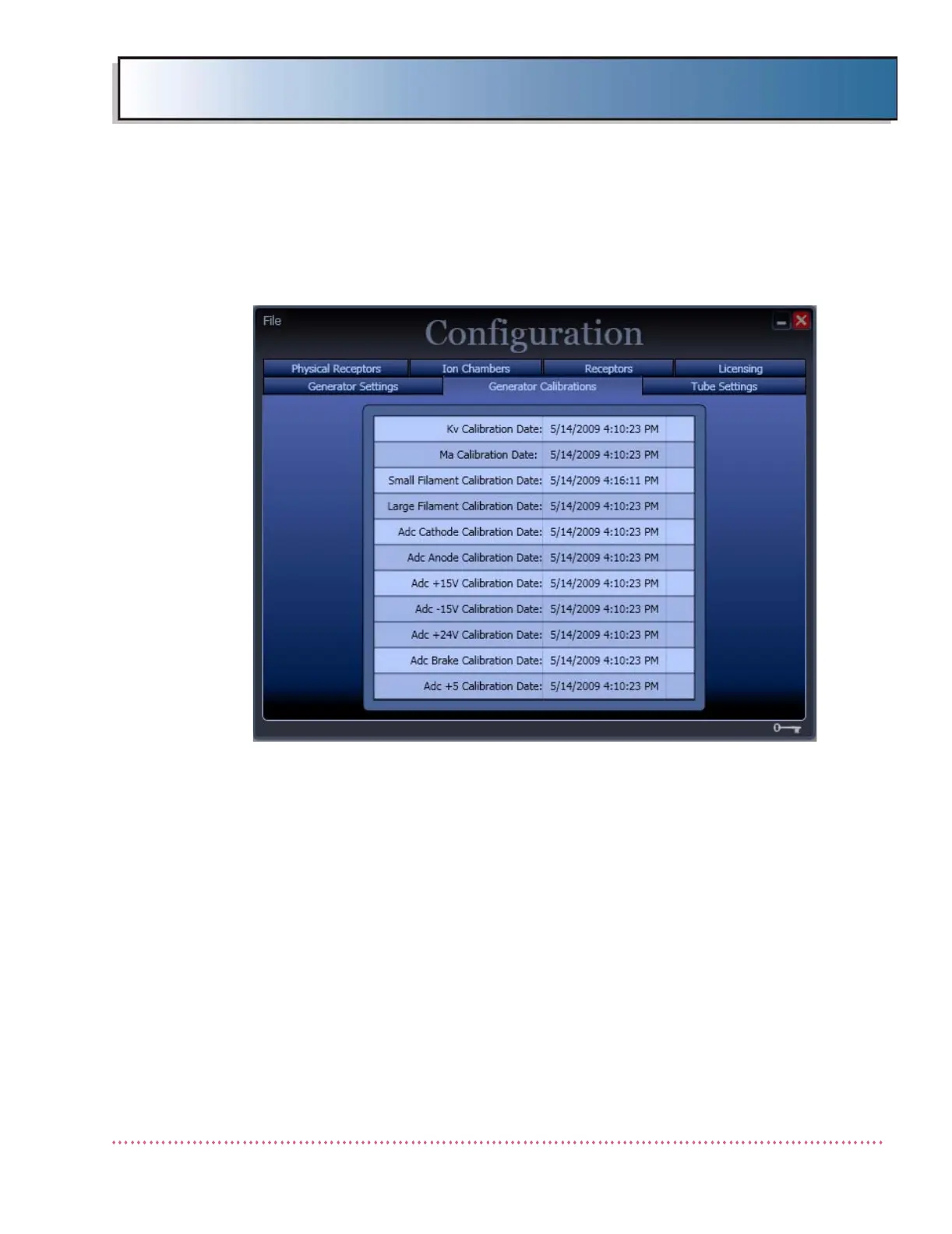

Figure D-5. Configuration Menu - Generator Calibration Tab
This screen displays the dates and times when kVp, mA, Filament, and A-D
Voltage calibrations were last performed. This screen is provided for informa-
tional purposes only; there are no settings required.
Tube Settings Tab
The Tube Settings Tab Screen, shown below, displays the current tube type
(model) and rotor settings. Also provided are the Tube Derating (Tube%)
and Heat Warning (Heat% Limit) settings. The tube model and rotor settings
are preset at the factory and normally should not be changed, except after
replacing the existing tube with a different type tube.
(Note: Consult Quan-
