Chapter 3 Calibration
Revision W HF Series X-ray Generators - Service Manual
3-6 Quantum Medical Imaging, LLC
SYSTEM CONFIGURATION
Press the key next to the Configuration field to access system configuration
functions. The Service Configuration Menu displays:

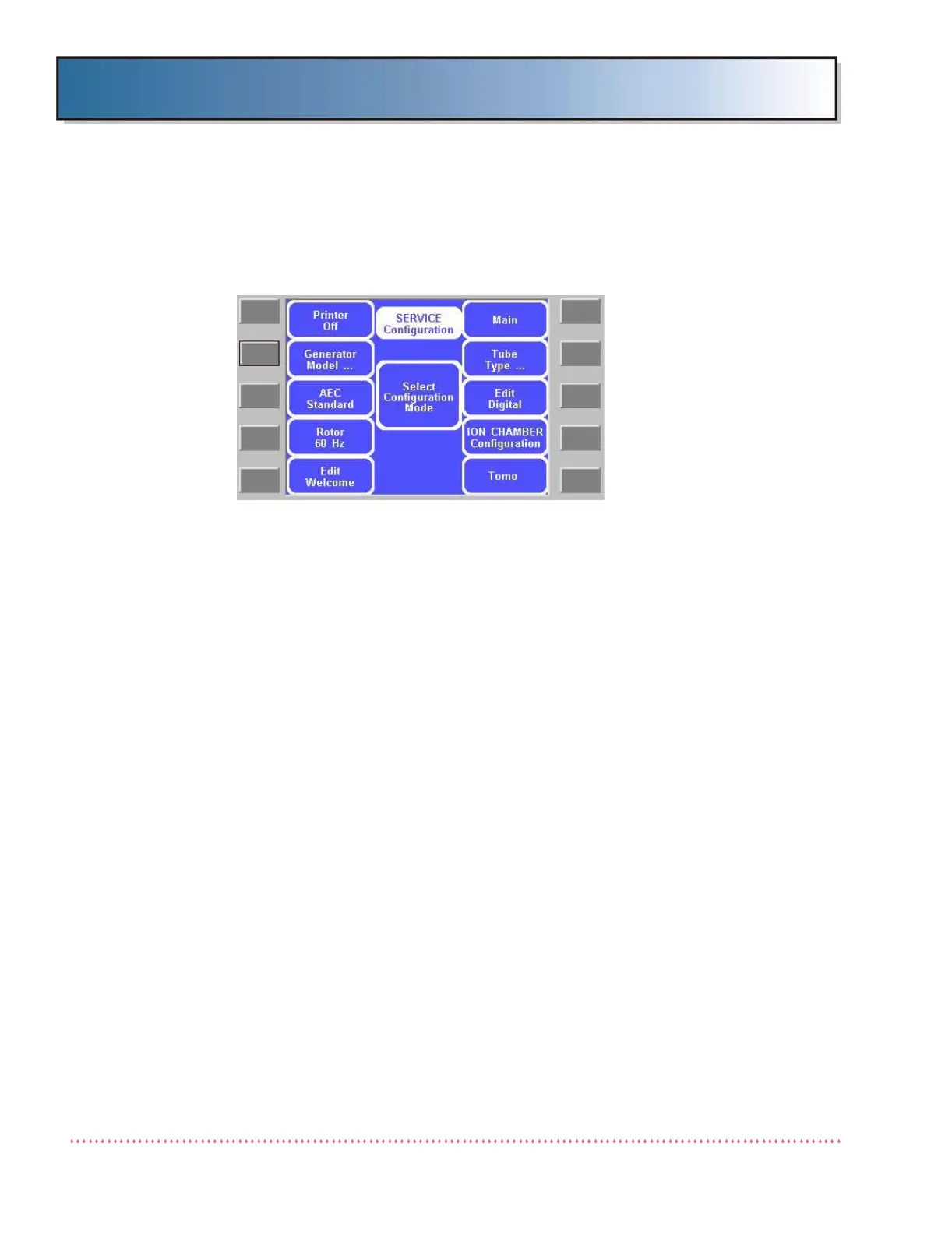

Figure 3-4. Service Configuration Menu
The Service Configuration Menu provides access to the system's configuration
settings. For proper operation of the generator, the settings must accurately
reflect the actual configuration of both the generator and the components to
which it is interfaced. Typically, these settings are made at the factory in accor-
dance with sales order specifications. However, it is recommended that you
review the current configuration settings for accuracy. The following briefly
describes the various Service Configuration Menu selections:
• Printer: Enables data output to an external label printer when one is
interfaced to the generator
• Generator Model setting: Accesses the generator maximum power
output derating setting (from 80% to 100%). Access to other functions
is restricted to authorized QMI factory personnel only
• AEC setting: displays AEC option setting (i.e., AEC "Standard", AEC
"Universal", AEC OFF)
• Rotor Drive setting: Accesses the rotor drive settings - 60 Hz (no high
speed starter), 50 Hz (no high speed starter), Quantum internal high-
speed starter (QMI HSS), or AID external high-speed starter (AID HSS)
• Edit Welcome/Facility: Accesses the facility name text editing and, on
ODYSSEY systems, the dealer name text editing utilities, which provide
functions necessary to edit the information appearing on the "Welcome
Screen" displayed during start-up
• Main: returns the system to the Service Menu (see Figure 3-3)
• Tube Type setting: Accesses the Tube Type Setting screen, for
selection of x-ray tube model used with system
• Edit Digital: Accesses the digital receptor settings including digital
receptor type (i.e., Canon, Konica, CMT, Generic, or NONE), Universal
system type (i.e., Quantum QV-800, Pausch COSMOS-2, or NONE), and
PREP HOLD setting (on or off).
To Next Page
