Quantum ODYSSEY HF Series User Manual

Chapter 3 Calibration
HF Series X-ray Generators - Service Manual Revision W
Quantum Medical Imaging, LLC 3-5
5. In the Password menu, enter the default Service Technician password
(58623) using the field select keys next to the corresponding numbers.
(This password enables access to Service Mode for modification of system
configuration, calibration and settings and for access to the APR Edit utility.)
6. Upon validation of the password, the Service Mode Menu displays:

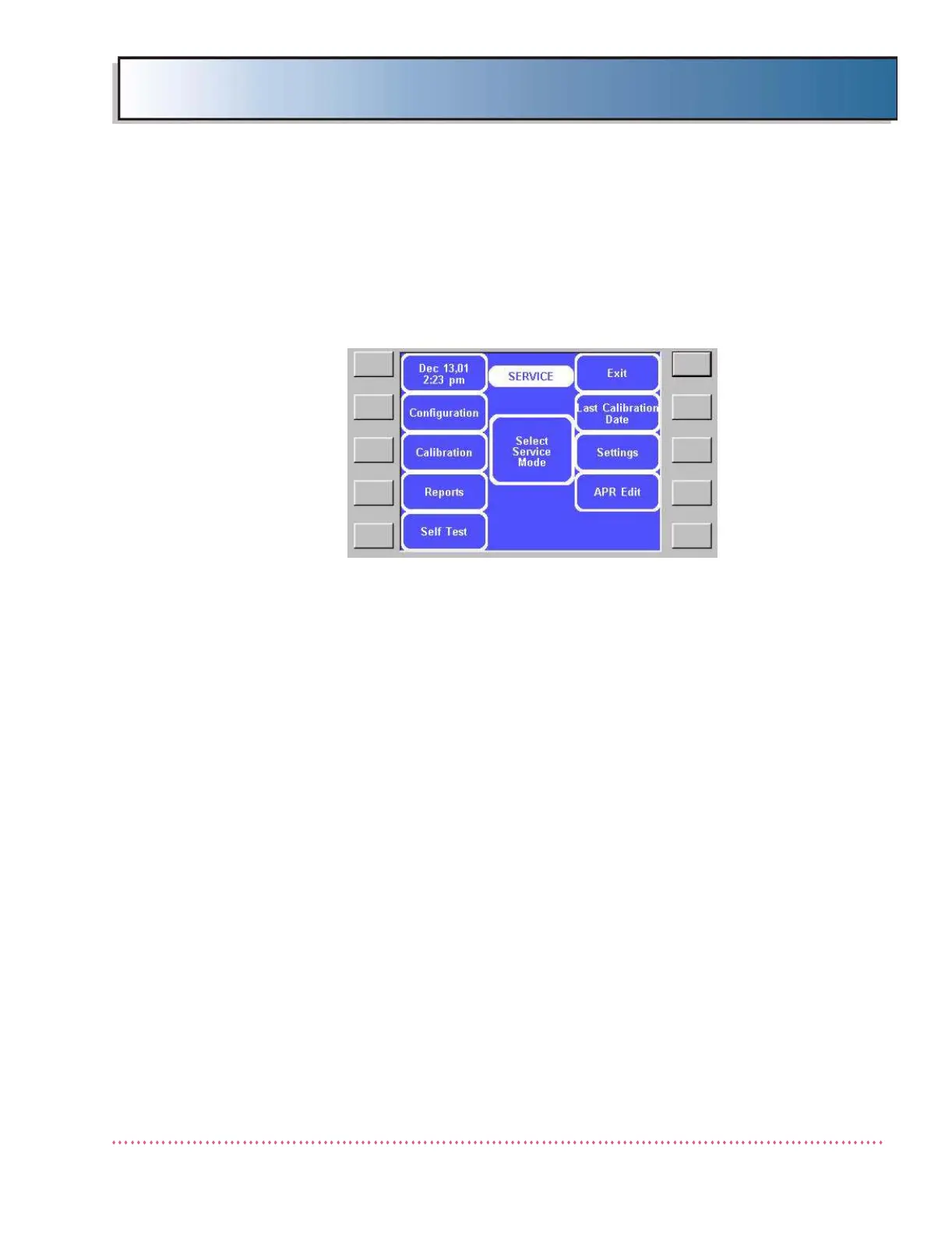

Figure 3-3. Service Menu
The Service Menu offers a selection of service-oriented system utilities, each of
which is described briefly below:
• Configuration utility: Provides access to system configuration settings,
such as AEC type, rotor drive settings, tube type, etc.
• Calibration utility: Provides access to system calibration functions, such
as filament, mA, kVp calibration and, if equipped with QG-AEC option,
AEC and film/screen calibrations.
• Reports utility: Provides access to Service Reports menu, which
provides Generator, Tube, Error Warnings, and Diagnostic reports (refer
to Chapter 5, SERVICE MAINTENANCE for more information).
• Self-Test utility: Currently not accessible.
• Last Calibration Date: Currently not accessible.
• Settings utility: Provides access to system settings, such as the
language, date, time, date format (international or U.S.) and backup
time/mAs settings.
• APR Edit utility: Used to edit existing APR screens or use to create new
screens (refer to Chapter 4, APR EDITOR in the operator’s manual for
more information).
Pressing the key next to the Exit field returns the system to the Start Up screen
(see Figure 3-1).
