Chapter 3 Calibration
Revision W HF Series X-ray Generators - Service Manual
3-20 Quantum Medical Imaging, LLC

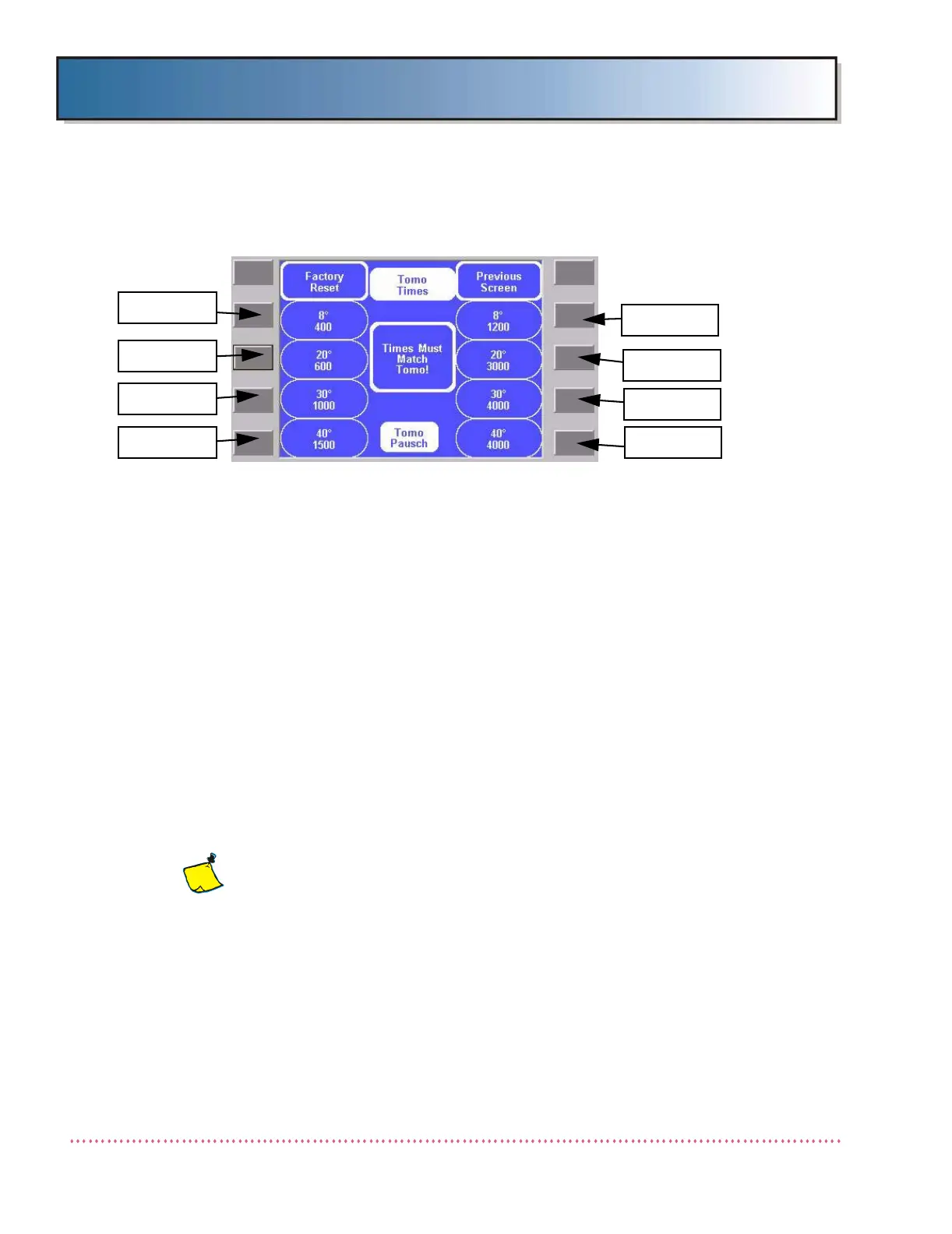

Figure 3-15. Tomo Times Screen - Pausch Tomo Selected
4. Press the Factory Reset key. All tomo sweep time settings will be set to
factory default values as shown in the sample screens above (the time
values shown are in milliseconds). Depending on the type tomography
system, proceed as follows:
a. If interfacing to a Siemens tomography system, do not change any of
the default tomo sweep time settings. The settings must reflect the
values shown in Figure 3-14. Press the key next to Previous
Screen field to exit Tomo Times screen.
b. If interfacing to a Pausch tomography system, the default tomo
sweep times for each key on the tomo system are shown in Figure 3-
15. These values may be changed as desired by the user. The time
range for each key is from 0.4 seconds (400 milliseconds) up to 4.0
seconds (4000 milliseconds). Please note that the last key (40°,
TIME 2) is non-configurable in the current generator design; this out-
put is parallel connected to (and therefore will have the same time
setting) as the 40°, TIME 1 output.
IMPORTANT: When interfacing the generator to a
Pausch tomography system, be sure to set the
tomo sweep times on the generator, as described
above, to correspond exactly with the tomo
sweep times programmed on the Pausch system.
c. Verify all tomo times are correct and then press the key next to the
Previous Screen field to save and exit.
