Chapter 3 Calibration
HF Series X-ray Generators - Service Manual Revision W
Quantum Medical Imaging, LLC 3-53
3. Press the key adjacent to the Edit F/S Name field. The film/screen
name Edit Sentence screen appears:

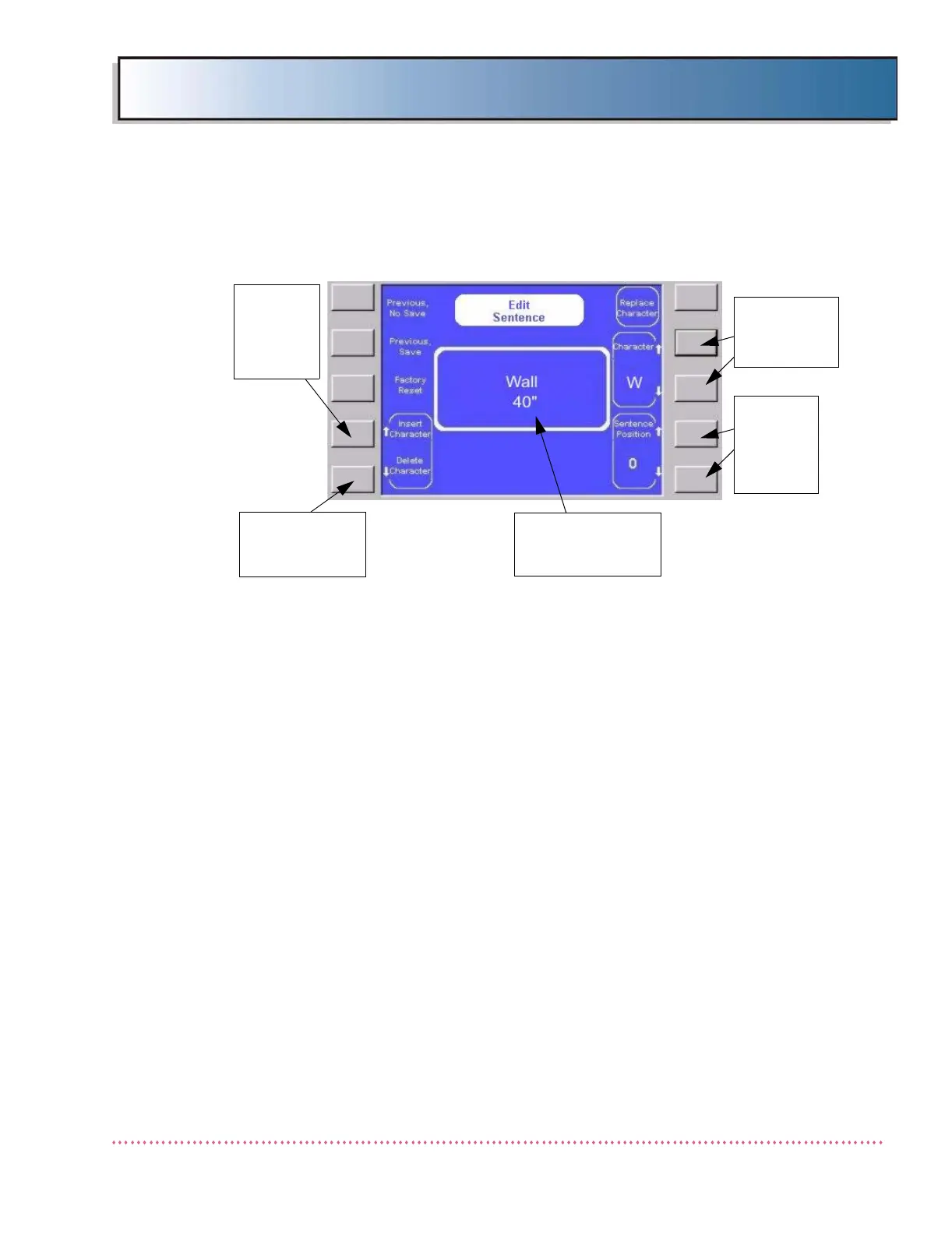

Figure 3-38. Sample Film/Screen Name Edit Sentence Screen
4. Use the up and down keys next to the Sentence Position field to
select the location to insert, replace or delete a character. For exam-
ple, if the text string "Wall 40" is displayed in the center display box
as shown in the sample screen above, choosing character location
"0" selects the letter "W", location "1" selects the letter "a", and so
on. Note that the character in the selected location appears in the
Character field.
5. To delete the selected character, press the key next to the Delete
Character field. To insert a new character or to replace the selected
character with a new character, use the up and down keys next to the
Character field to scroll through all available alphanumeric charac-
ters (begins with a "no character" or blank space) until the character
you want appears in the Character field window. To insert the
selected character in the position chosen, press the key next to the
Insert Character field. To replace the character in the selected
location with the new character, press the key next to the Replace
Character field.
6. When done editing the film/screen name, select Previous, Save to
save the new settings and return to the AEC Calibration Menu or
select Previous, No Save to ignore the changes and return to the
AEC Calibration Menu. To restore film/screen name to the factory
default name, press the key next to the Factory Reset field.
USE THIS
KEY TO
INSERT
SELECTED
CHARACTER
USE THIS KEY TO
DELETE SELECTED
CHARACTER
USE THESE KEYS
TO SELECT
CHARACTER
USE THESE
KEYS TO
SELECT
CHARACTER
POSITION
CENTER DISPLAY BOX
(SHOWS CURRENT
FILM/SCREEN NAME)
