Chapter 2 Assembly & Installation
HF Series X-ray Generators - Service Manual Revision W
Quantum Medical Imaging 2-37

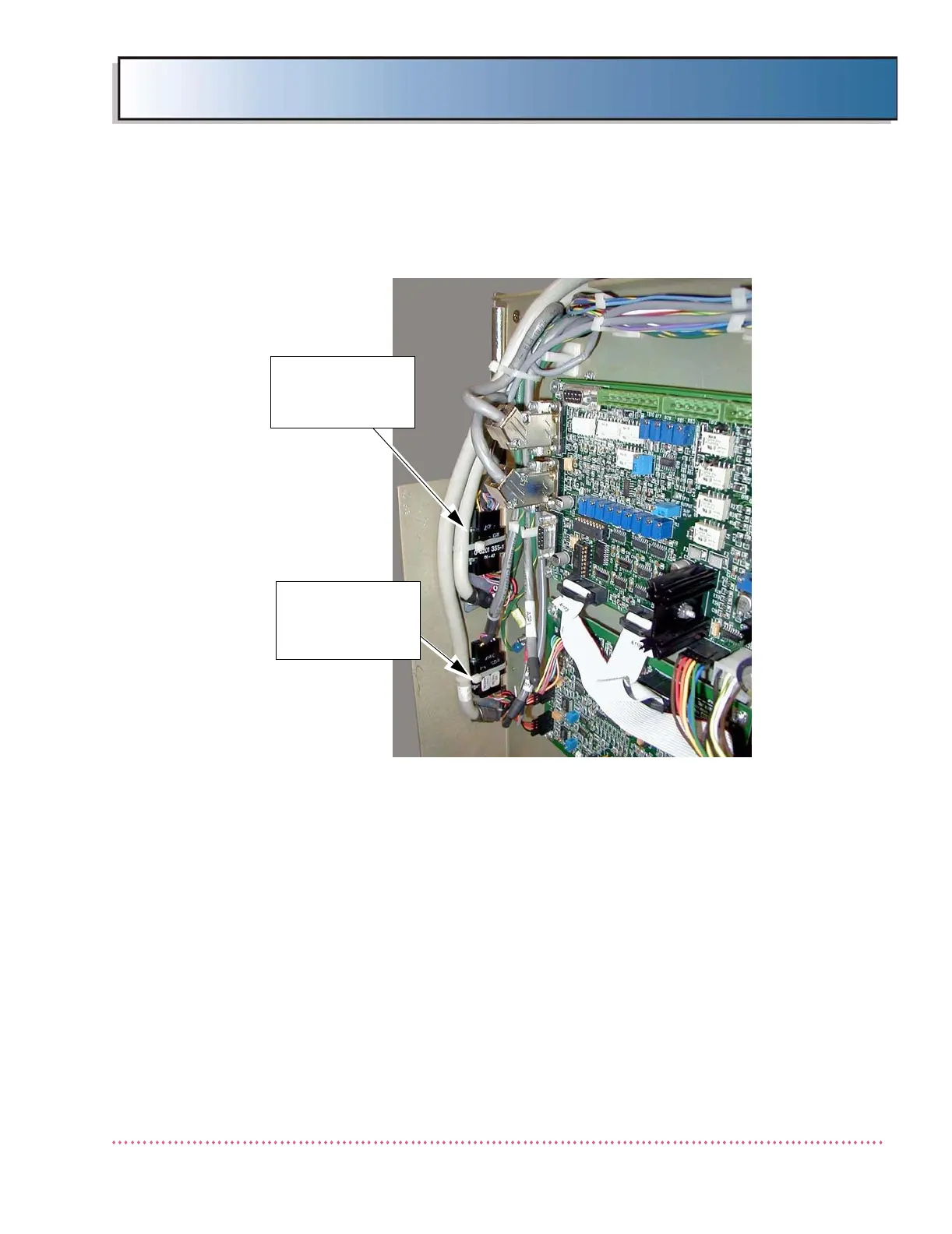

Secure the ion chamber cables to the PCB Door using cable ties as shown in
Figure 2-20.
Figure 2-20. Siemens Ion Chamber Cable Management
Interfacing to Siemens Tomography System (When Applicable)
The Siemens tomo interface cable (supplied with the Siemens system) has
attached to it at one end three plugs identified as "KK1B G1,G2 X10", "KK1B
G1,G2 X11" and "KK1B G1,G2 X12". Plugs "X10" (TABLE), "X11" (WALL) and
"X12" (TOMO SWEEP TIME) will need to be cut off and the wire ends stripped
to allow connection to the universal AEC Board A11 (AY40-027S) pluggable
SECURE ONE ION
CHAMBER CABLE
CONNECTOR HERE
SECURE OTHER
ION CHAMBER
CABLE CONNECTOR
HERE
