Chapter 5: Dismantling ABL77 Service Manual

Upper Module, Continued

Disconnecting

the cables

(continued)

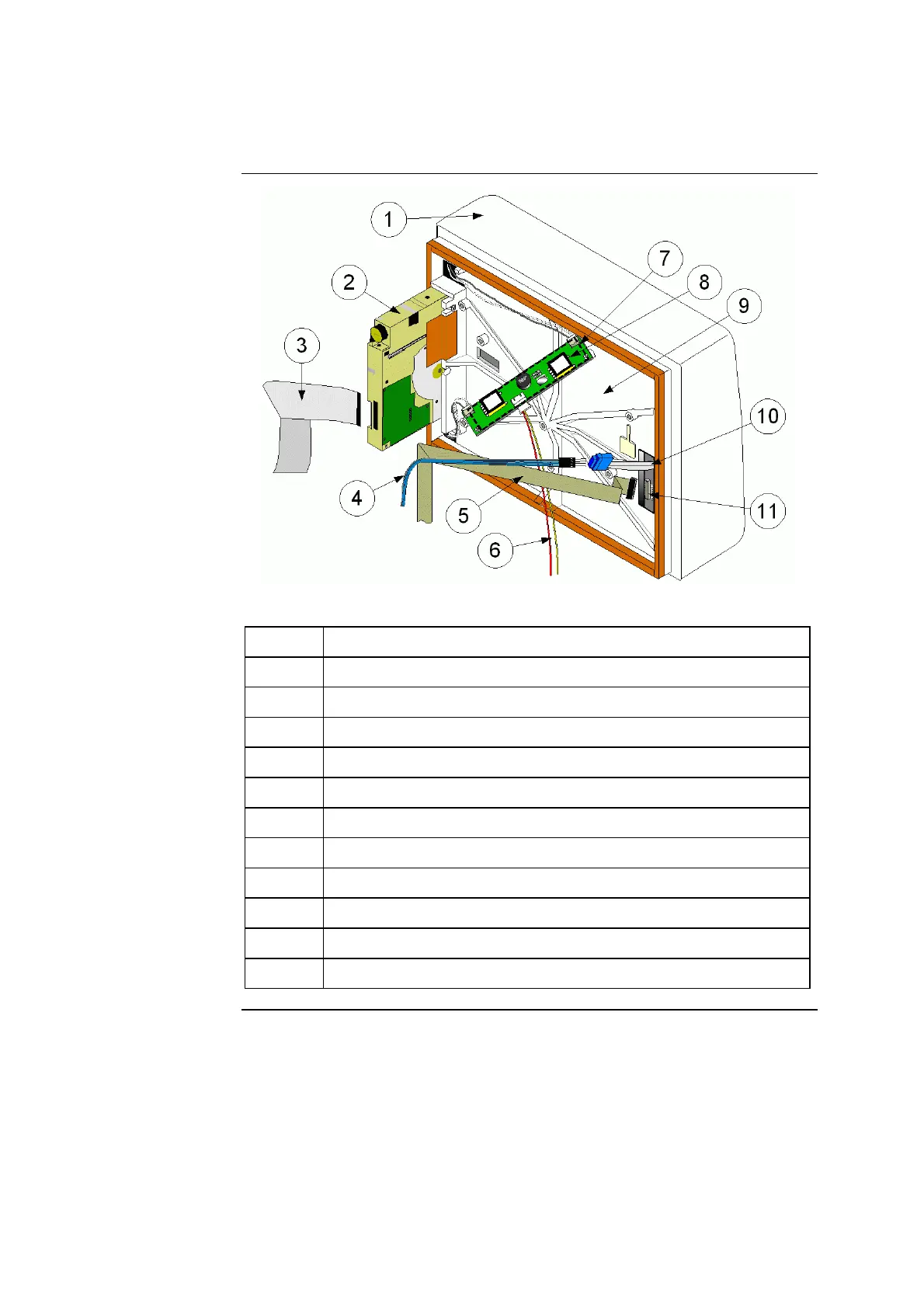

Figure 5-2

Part Function

1. Upper housing

2. Disk drive

3. Disk drive cable

4. Touch screen cable

5. LCD display cable

6. Backlight inverter cable

7. Insulating tape

8. Backlight inverter board

9. Housing bracket

10. Touch screen panel

11. LCD display

5-6 Rev. F
