ABL77 Service Manual Chapter 7: Re-Assembly
Lower Module
Valve Boards – General Information
Introduction
This section describes the different types of valve boards that may be encountered
during service.
Y-cable for L3
adapter
During the transition process to the Check Valve Fluidics system, some existing
valve boards were adapted to the Check Valve Fluidics by adding a Y-cable for L3
kit (REF: 905-782) Figure 7-5.

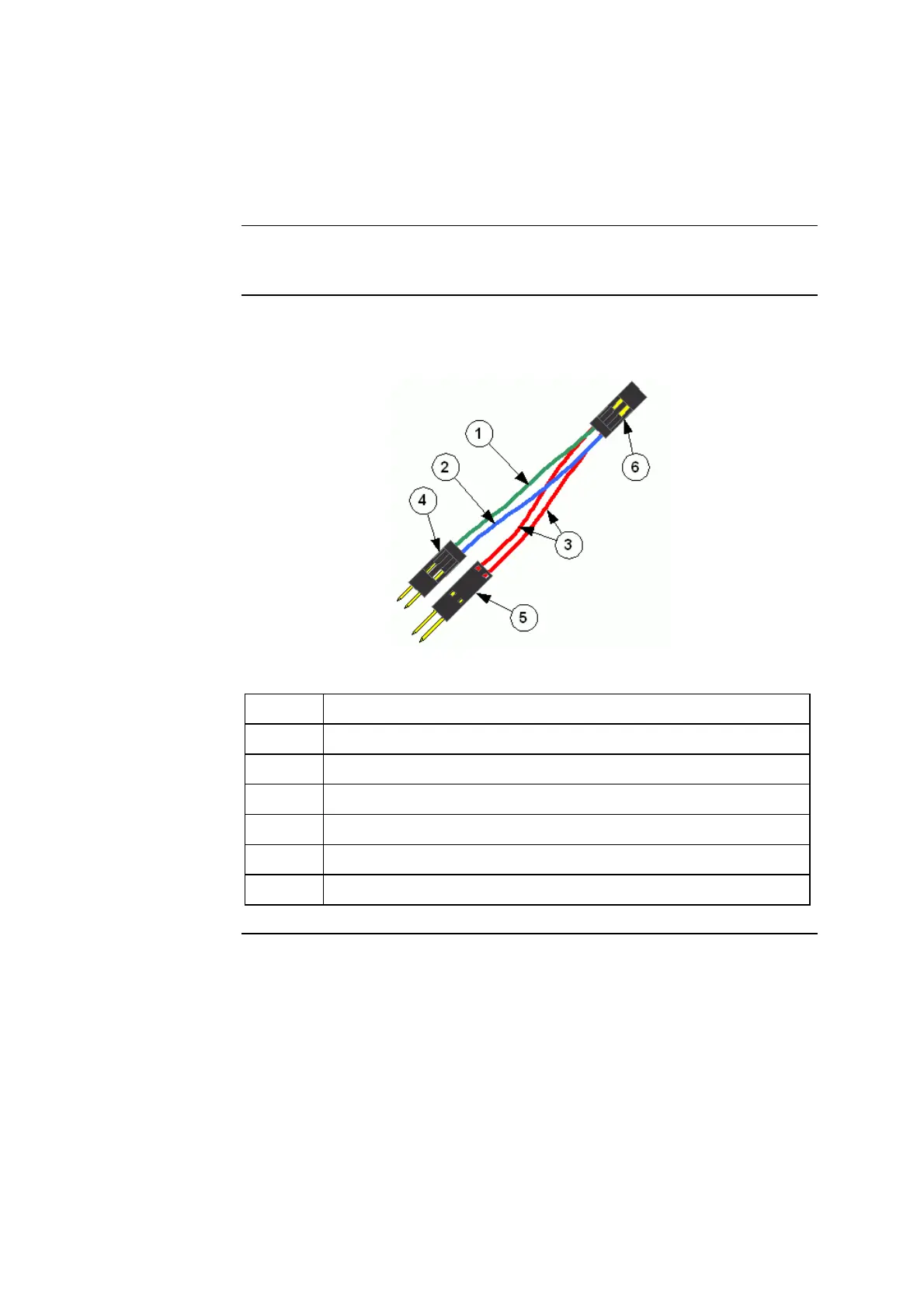

Figure 7-5
Part Function
1. Green wire
2. Blue wire
3. Red wires
4. Waste pump connector
5. Valve L3 connector
6. Valve board J4 connector
Continued on next page
Rev. F 7-15
