Chapter 7: Re-Assembly ABL77 Service Manual

Upper Module, Continued

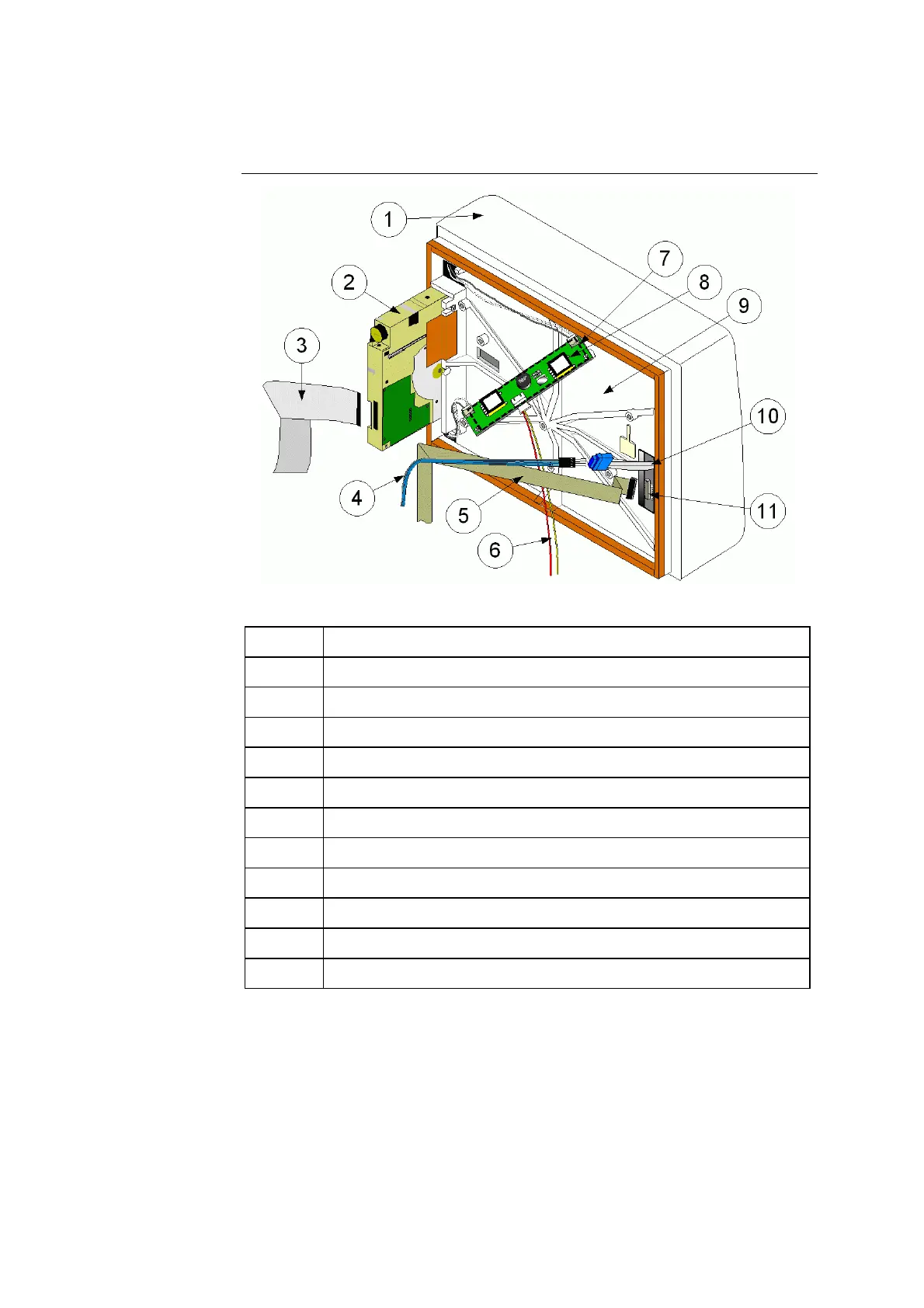

Upper module

diagram

Figure 7-4

Part Function

1. Upper housing

2. Disk drive

3. Disk drive cable

4. Touch screen cable

5. LCD display cable

6. Backlight inverter cable

7. Backlight inverter

8. Insulating tape

9. Housing bracket

10. Touch screen panel

11. LCD display

7-14 Rev. F
