Chapter 7: Re-Assembly ABL77 Service Manual
Printer Door
Introduction
This procedure describes the process for attaching the printer door to the lower
module.
Because the analyzer serial number resides on the label inside the printer door a
replacement door must be custom ordered from RADIOMETER. Be prepared to
provide the analyzer serial number.
NOTE:
Printer door
Follow these steps to attach the printer door as shown in Figure 7-22.
Step Action
1.
Slide the printer door onto the right hinge pin of the printer chassis.
2.
Slide the door hinge into the left side of the door.
3.
Slip the door hinge over the support post on the printer chassis and
slide a retaining ring (e-clip) onto the support post.
4.
Using needle nose pliers, connect the extension spring to the anchor in
the printer door.
5.
Inspect and adjust door if needed. The door should close on its own
when released from the fully open position.

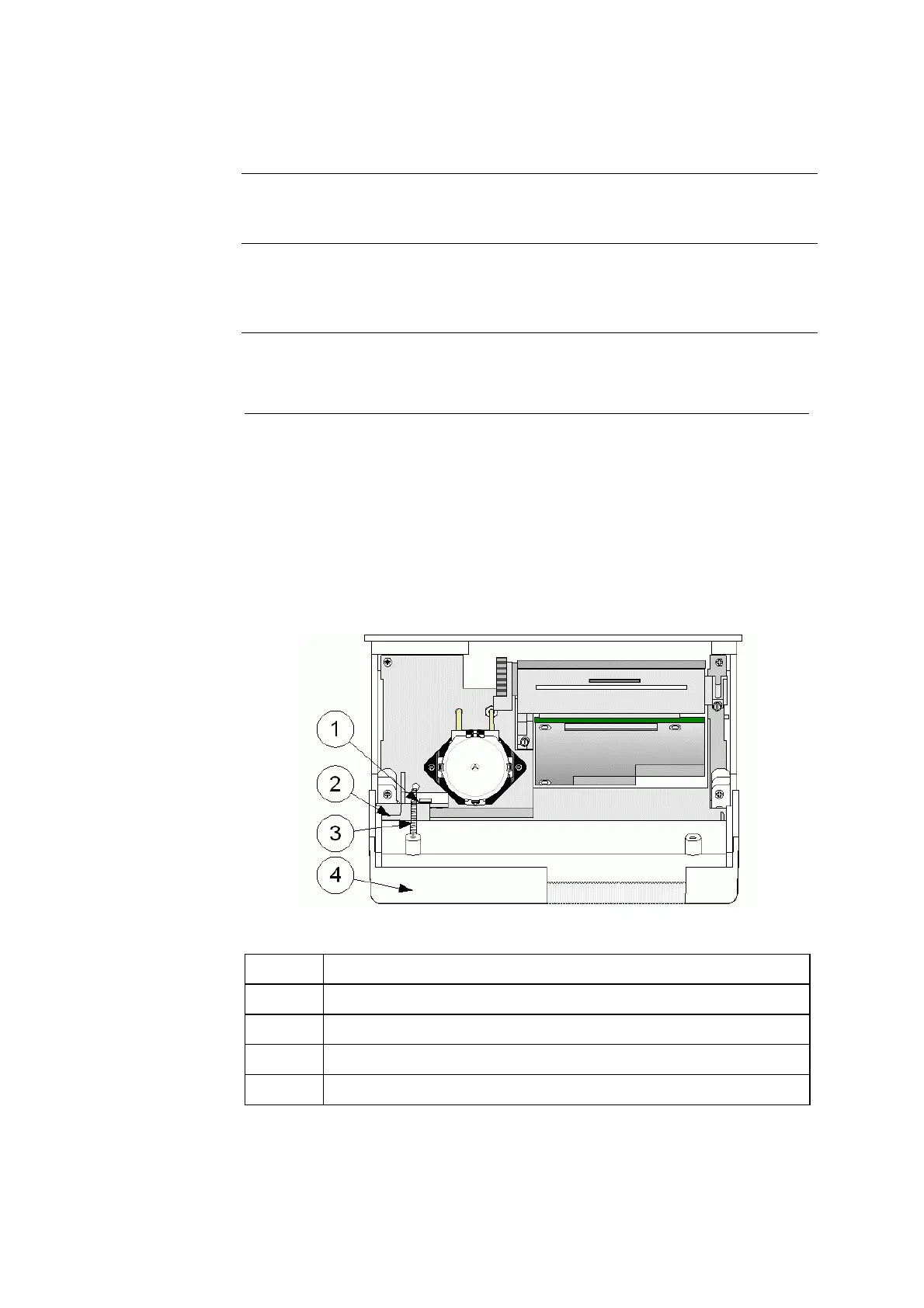

Figure 7-22
Part Function
1. Retaining ring
2. Door hinge
3. Extension spring
4. Printer door
7-36 Rev. F
