RADIOMETER ABL 77 Series User Manual

ABL77 Service Manual Chapter 6: Replacements
Printer Power Cable
Introduction
Follow these steps to replace the printer power cable.
Step Action
1.
Remove the electronics module.
2.
Disconnect the old printer power cable from the front of the battery
control board.
3. Connect the new printer power cable (item 1 in figure 6-31) to the
battery control board.
NOTE: The cable will only connect to the mated connector. Also, the
connector is keyed so that the connectors can only be installed in the
correct orientation.
4.
Re-assembly the analyzer starting with the electronics module.

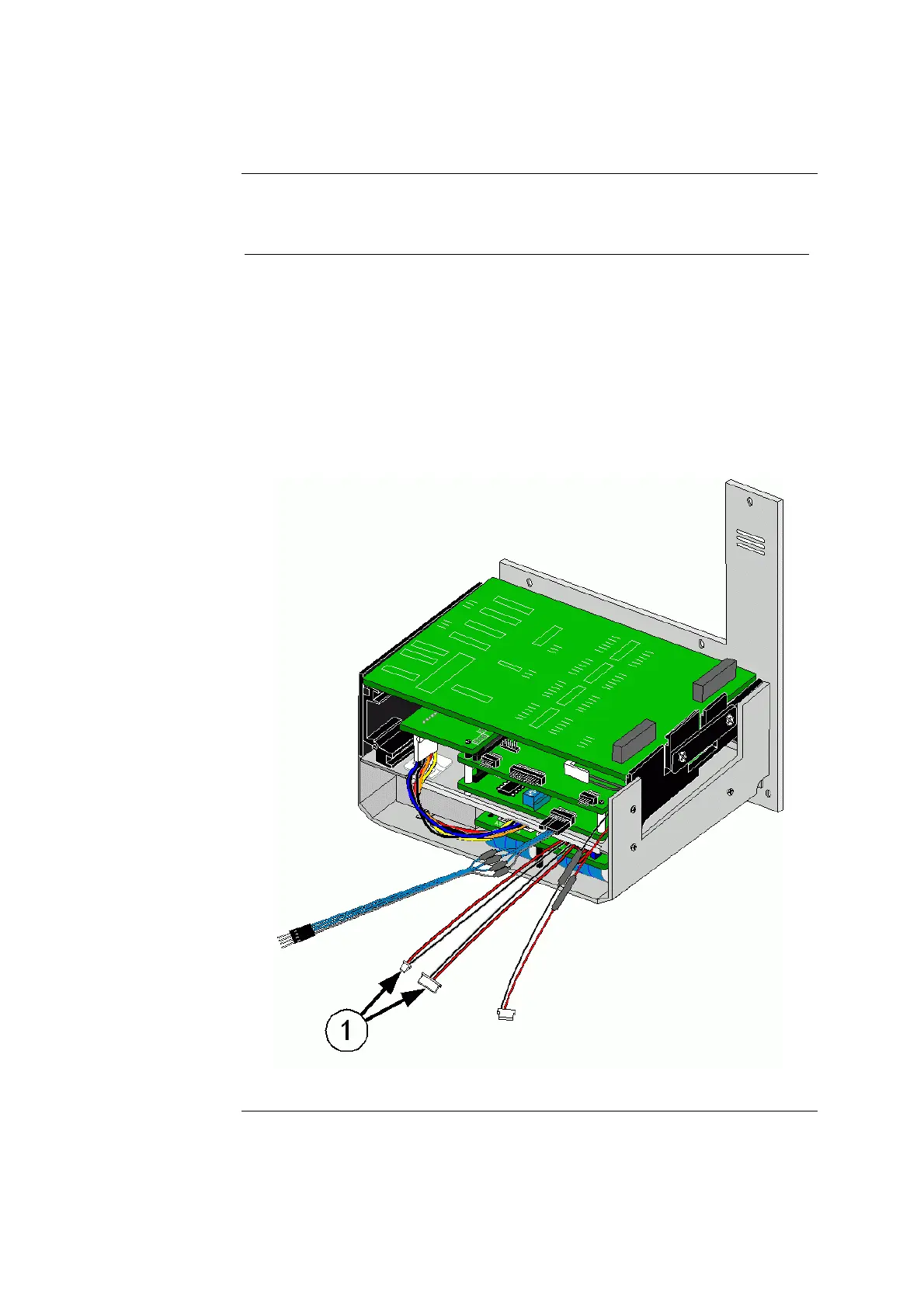

Figure 6-31
Rev. F 6-49
