ABL77 Service Manual Chapter 5: Dismantling

Valve Board Styles

Valve boards

Reference the following diagrams for the different valve board styles.

Valve board

with replaceable

valves and J10

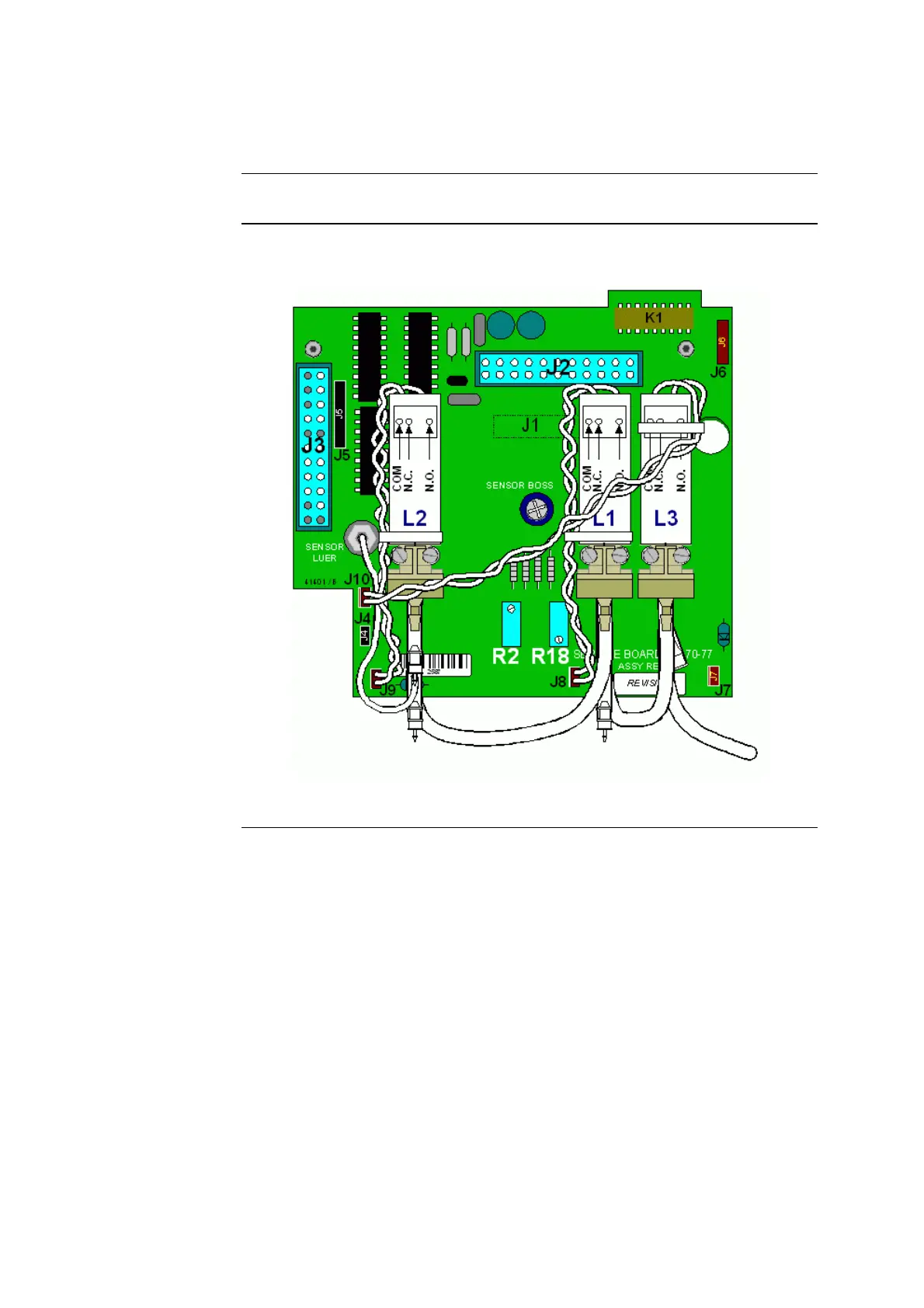

Figure 5-20 is an example of the valve board with replaceable valves together with

the check valve fluidics and a J10 connector for valve L3.

Figure 5-20

Continued on next page

Rev. F 5-31
