RADIOMETER ABL 77 Series User Manual

Chapter 5: Dismantling ABL77 Service Manual
Valve Board Styles, Continued
Valve board
with replaceable
valves and
Y-cable

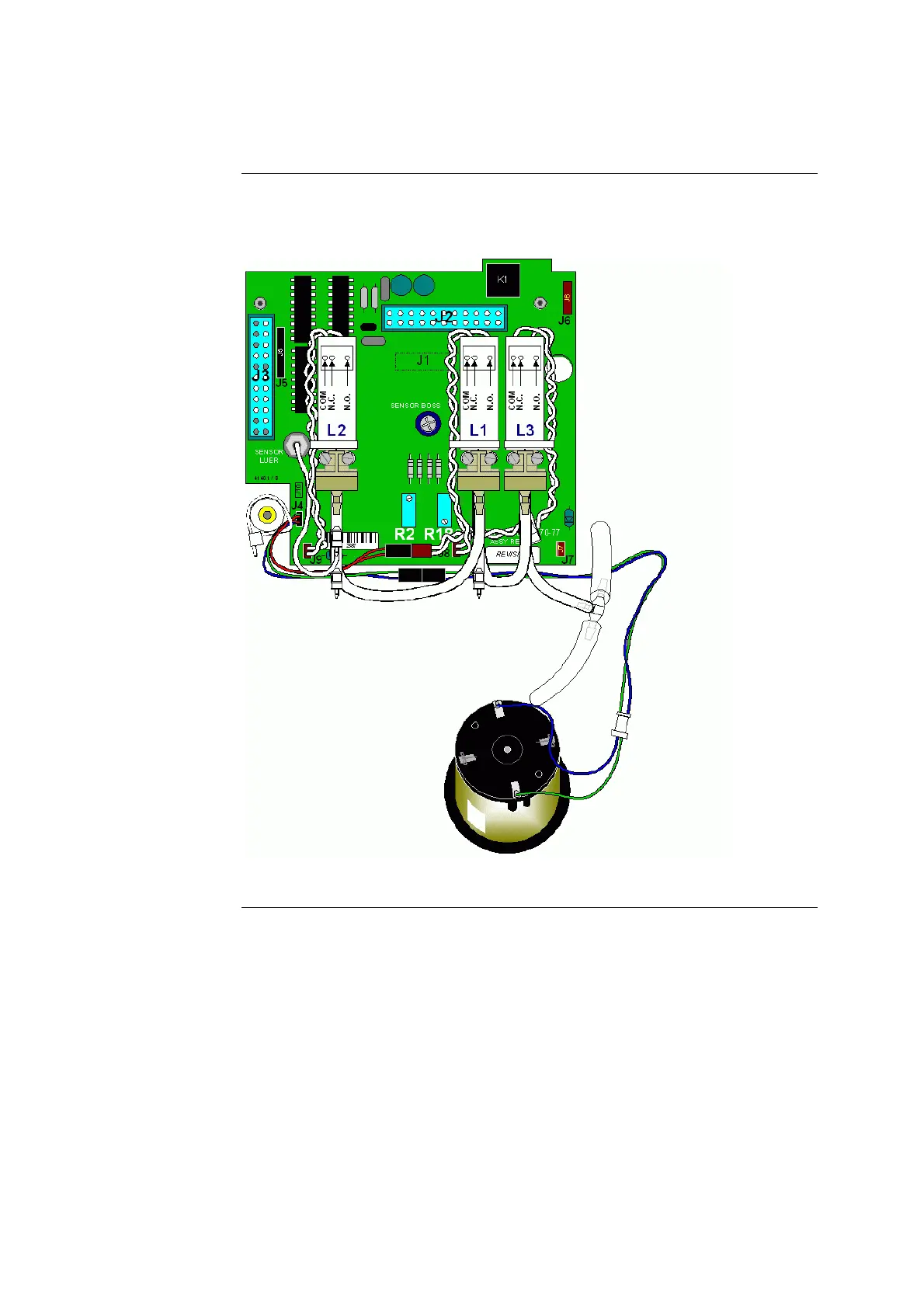

Figure 5-21 is an example of the valve board with replaceable valves together with
the Y-cable for L3 attached. This cable allows the check valve fluidics to be used
on a board without a J10 connector.
Figure 5-21
Continued on next page
5-32 Rev. F
