ABL77 Service Manual Chapter 5: Dismantling

Valve Board Styles, Continued

Valve board

with replaceable

valves and

original fluidics

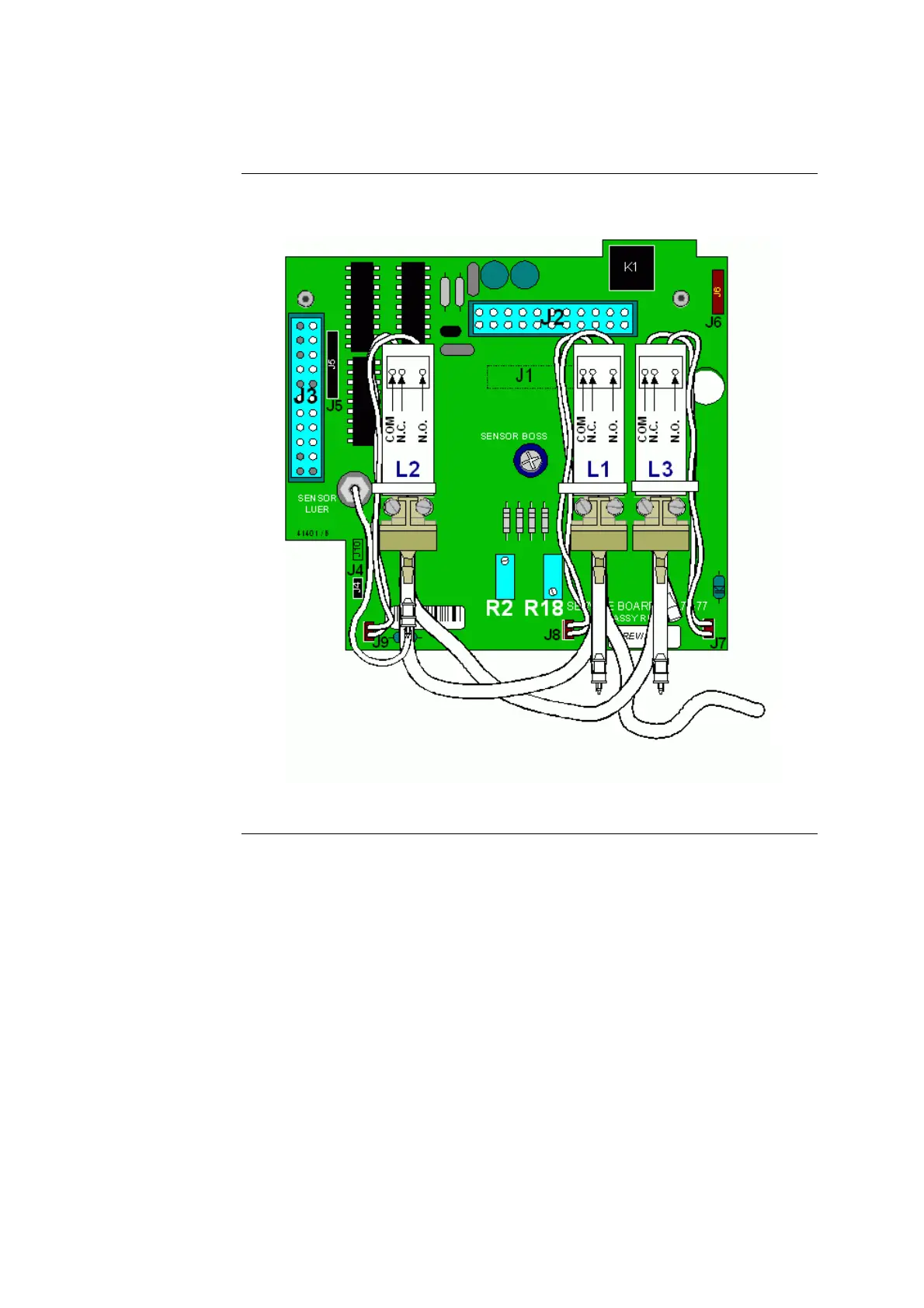

Figure 5-22 is an example of the original valve board with replaceable valves

together with the original fluidics.

Figure 5-22

Continued on next page

Rev. F 5-33
