ABL77 Service Manual Chapter 5: Dismantling
Fan Assembly
Introduction
Follow these steps to remove the cooling fan assembly as shown in Figure 5-30.
Step Action
1.
Follow the instruction for removing the battery control board.
2.
Disconnect the fan cable from the battery control board.
3.
Using a 1/4” nut driver, remove the four KEP nuts holding the fan.

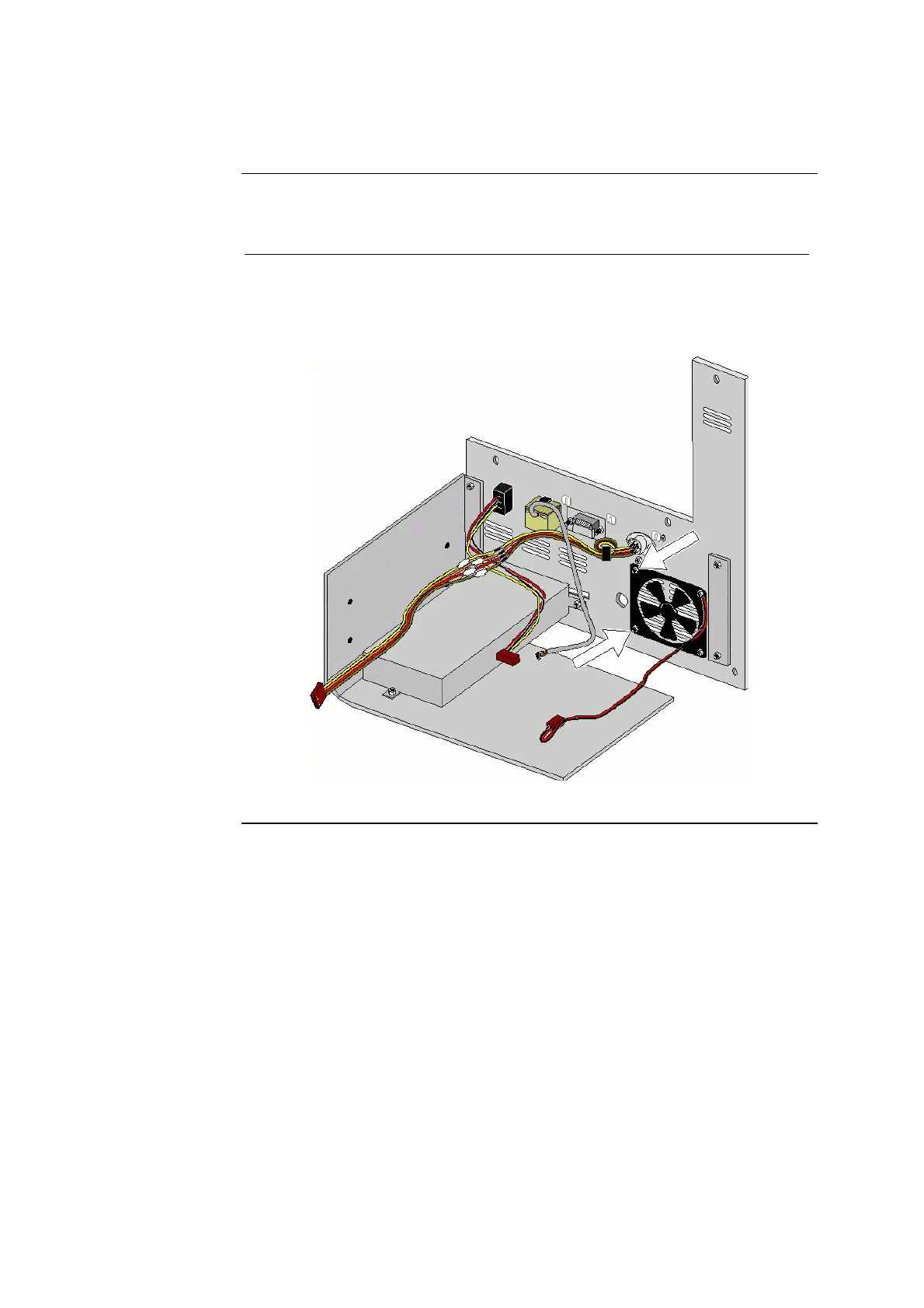

Figure 5-30
Rev. F 5-51
