ABL77 Service Manual Chapter 7: Re-Assembly
Electronics Chassis and Battery Cage
Introduction
Follow these steps to attach the electronics chassis and battery cage to the rear
panel (see Figure 7-25).
Step Action
1.
Align the electronics chassis with the mounting screws of the rear
panel. Using a 5/16” nut driver or open-end wrench, attach four Kep
nuts.
2.
Apply a small drop of threadlocker 222 to the threads.
3.
Using a 5/16” open-end wrench, secure the battery cage to the rear
panel and electronics chassis with three Kep nuts.

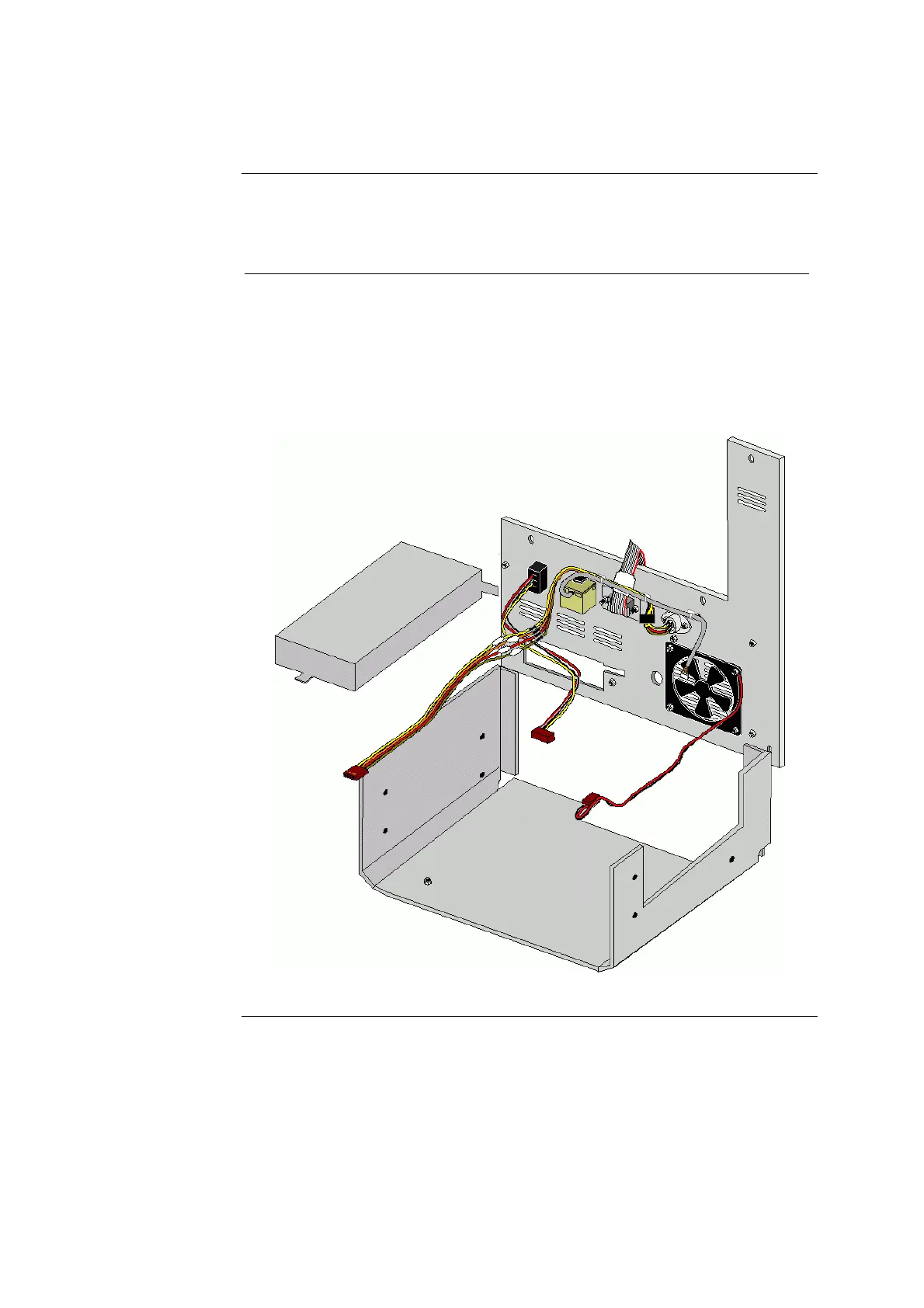

Figure 7-25
Rev. F 7-39
