Chapter 9: Spare Parts ABL77 Service Manual
Modules and Externals
Introduction

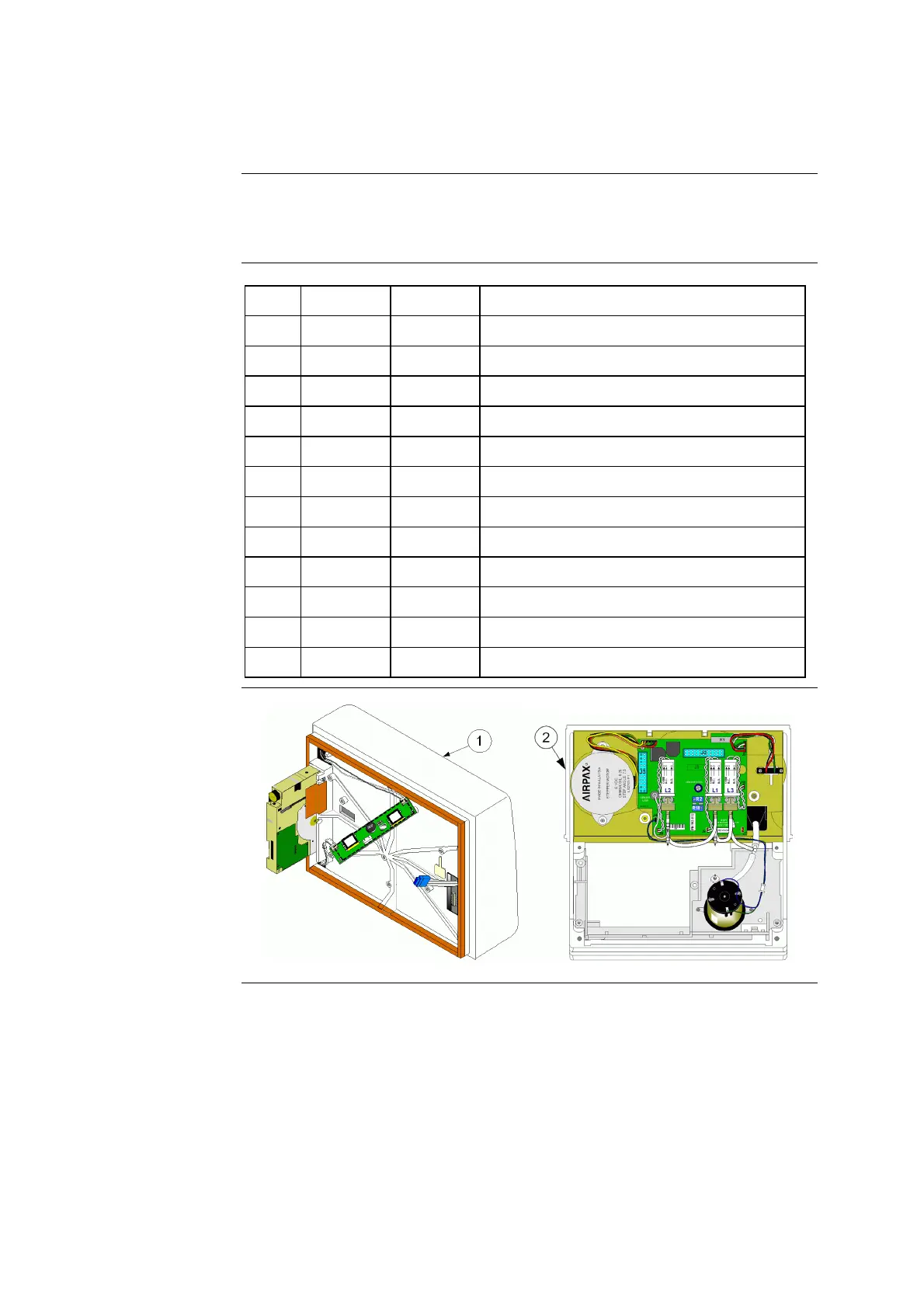

This section lists the spare parts available for servicing the full modules or external
parts. The item number in the left column refers to the diagrams on the following
pages (* = Trade-in agreement).
Item REF Quantity Description
1. 902-695 1 Upper module *
2. 902-694 1 Lower module *
3. 902-693 1 Electronics module *
4. 886-484 1 Carry handle
5. 902-692 1 Main housing
6. 886-494 1 Battery door
7. 924-295 1 Battery insulator card
8. 431-016 1 Battery pack
9. 924-286 1 Bar code gun holder
10. 902-660 1 Bar code gun
11. 981-751 1 Label, luer capping (5 each)
12. 924-301 4 Luer caps (20 each)
Module
diagrams
Continued on next page
9-2 Rev. F
To Next Page
