Chapter 6: Replacements ABL77 Service Manual
Printer Data Cable
Introduction
Follow these steps to replace the printer data cable.
Step Action
1.
Remove the electronics module.
2.
Disconnect the interface board from the CPU board.
3.
Disconnect the old printer data cable from the connector on the
interface board.

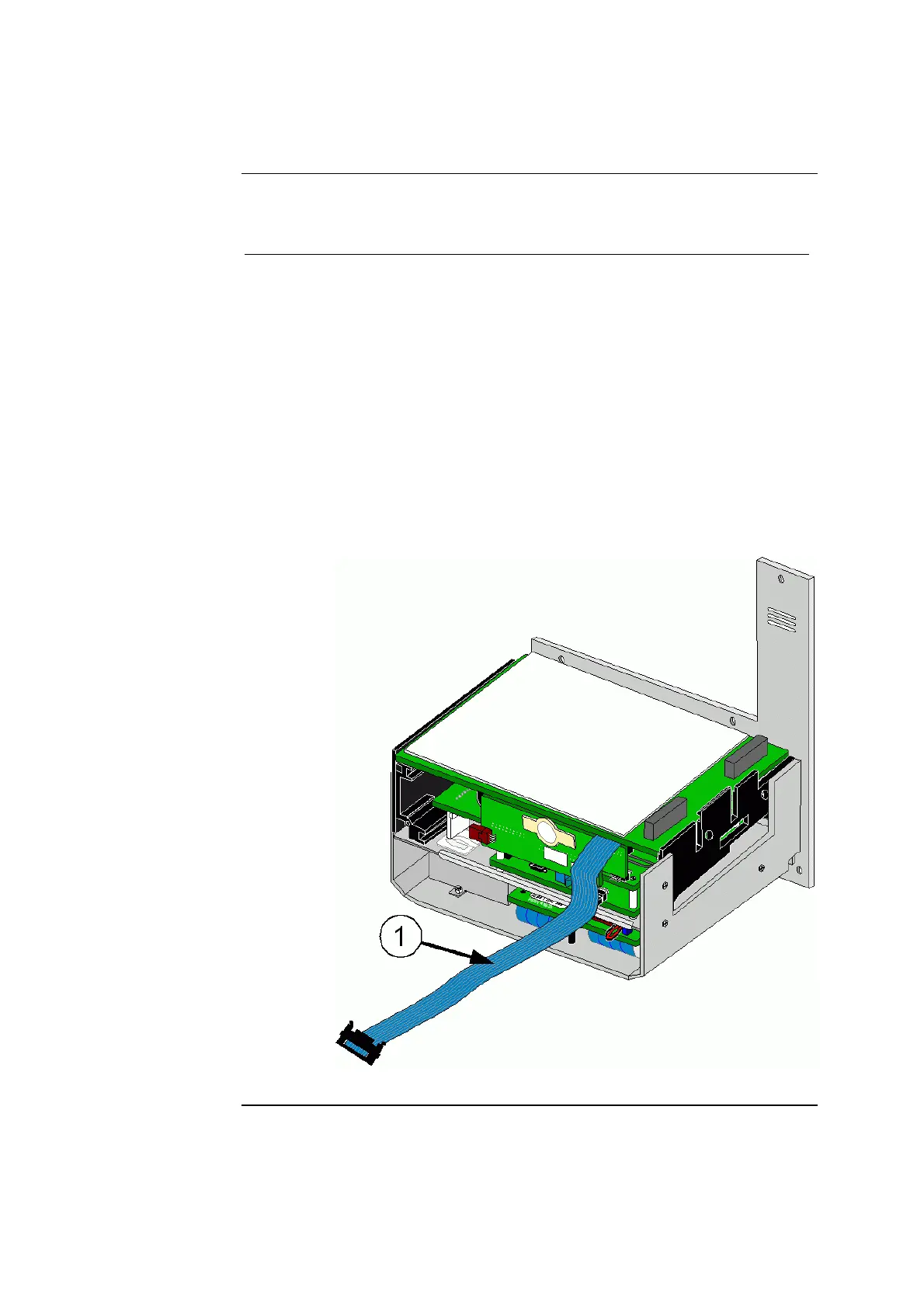

4. Connect the new printer data cable (item 1 in figure 6-30) to the
interface board.
NOTE: The cable ends are unique for each connection. Only the
correct end will connect to the interface board. Also, the cable is
keyed so that the connectors can only be installed in the correct
orientation.
5.
Re-connect the interface board.
6.
Re-assembly the analyzer starting with the electronics module.
Figure 6-30
6-48 Rev. F
