Chapter 5: Dismantling ABL77 Service Manual

Battery Control Board, Continued

Battery control

board

(continued)

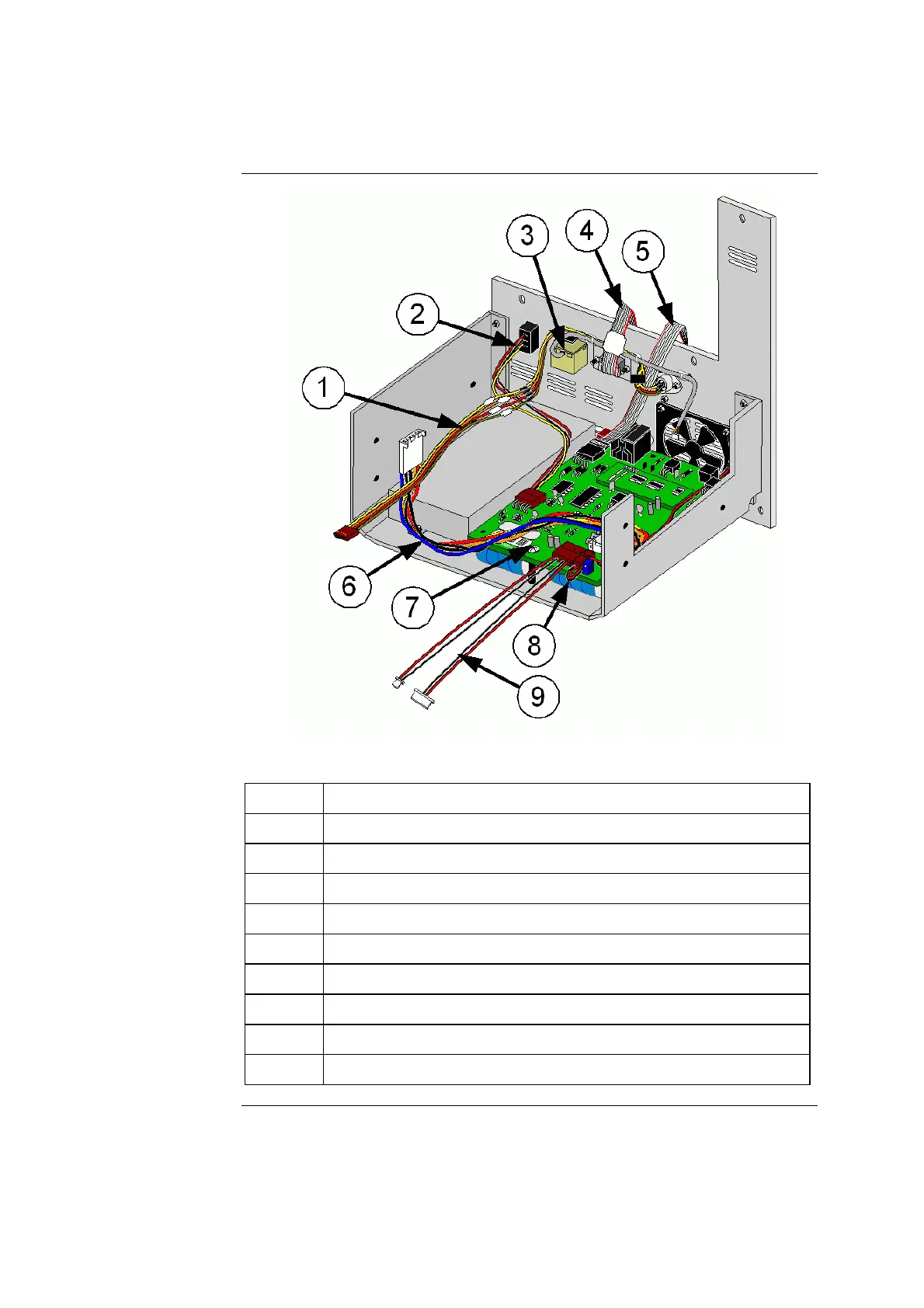

Figure 5-29

Part Function

1. Barcode scanner / keyboard cable

2. Power switch cable

3. Ethernet cable

4. COM1 cable

5. A/D Cable

6. Power board cable

7. Battery control board

8. Fan assembly cable

9. Printer power cable

5-50 Rev. F
