Chapter 5: Dismantling ABL77 Service Manual

Valve Board with Replaceable Valves, Continued

Removing the

valve board

(continued)

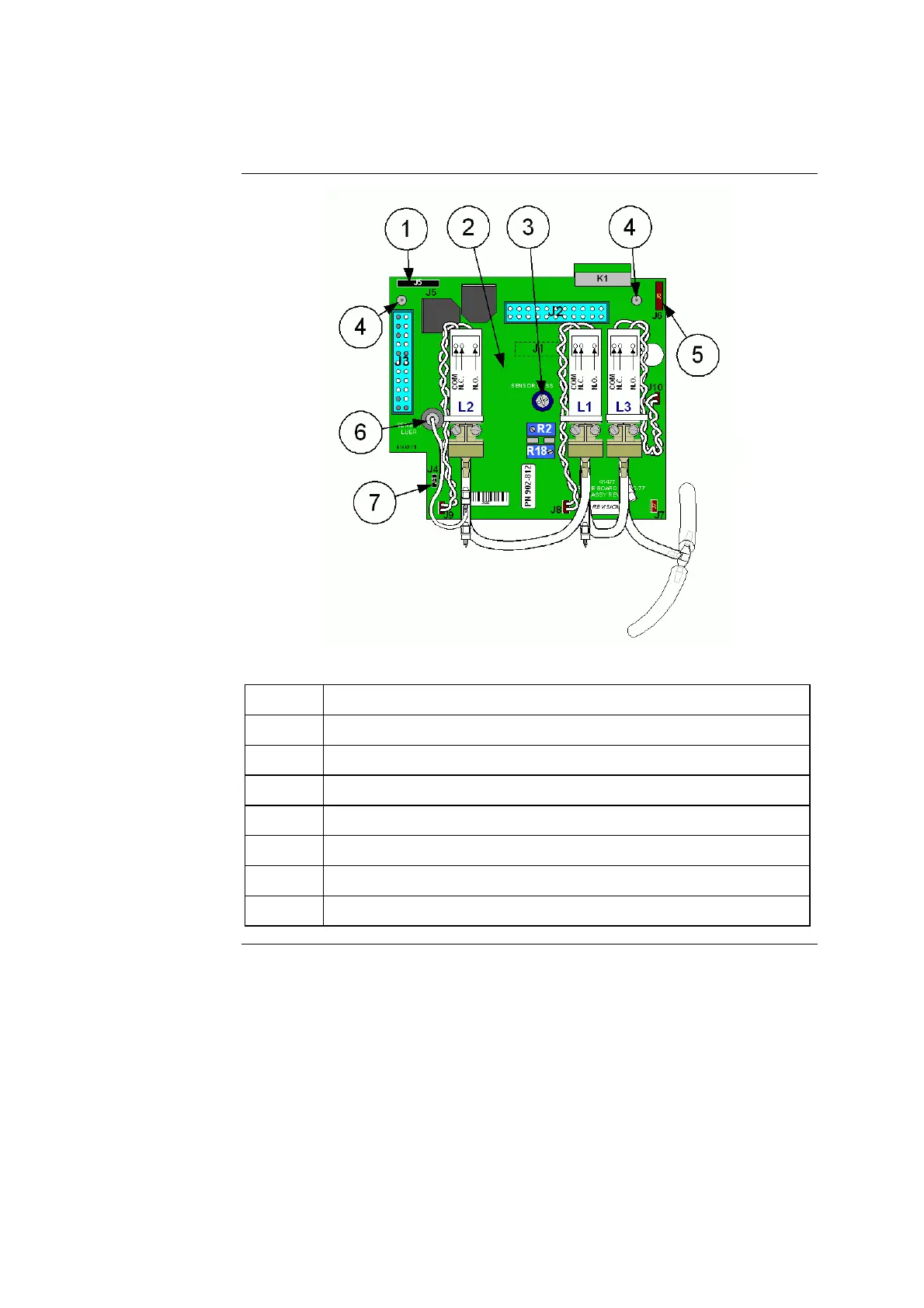

Figure 5-19

Part Function

1. J5 roller pump connector

2. Surface-mount valve board

3. Valve board support screw

4. Valve board screws

5. J6 opto-sensor connector

6. Sensor cassette fitting luer

7. J4 waste pump connector

Continued on next page

5-30 Rev. F
