ABL77 Service Manual Chapter 5: Dismantling
Roller Wheel and Roller Pump, Continued
Removing the
roller pump
Follow these steps to remove the roller pump motor from the back of the lower
module as shown in Figure 5-14.
Step Action
1.
Remove the roller wheel from the lower module.
2.
Remove the lower module.
3.
Locate the roller pump motor at the back of the lower module.
4.
Disconnect the roller pump cable from J5 on the valve board.
5.
Using a 5/64” Allen wrench, remove the two screws securing the
roller pump. Lift the roller pump motor away from the lower module.

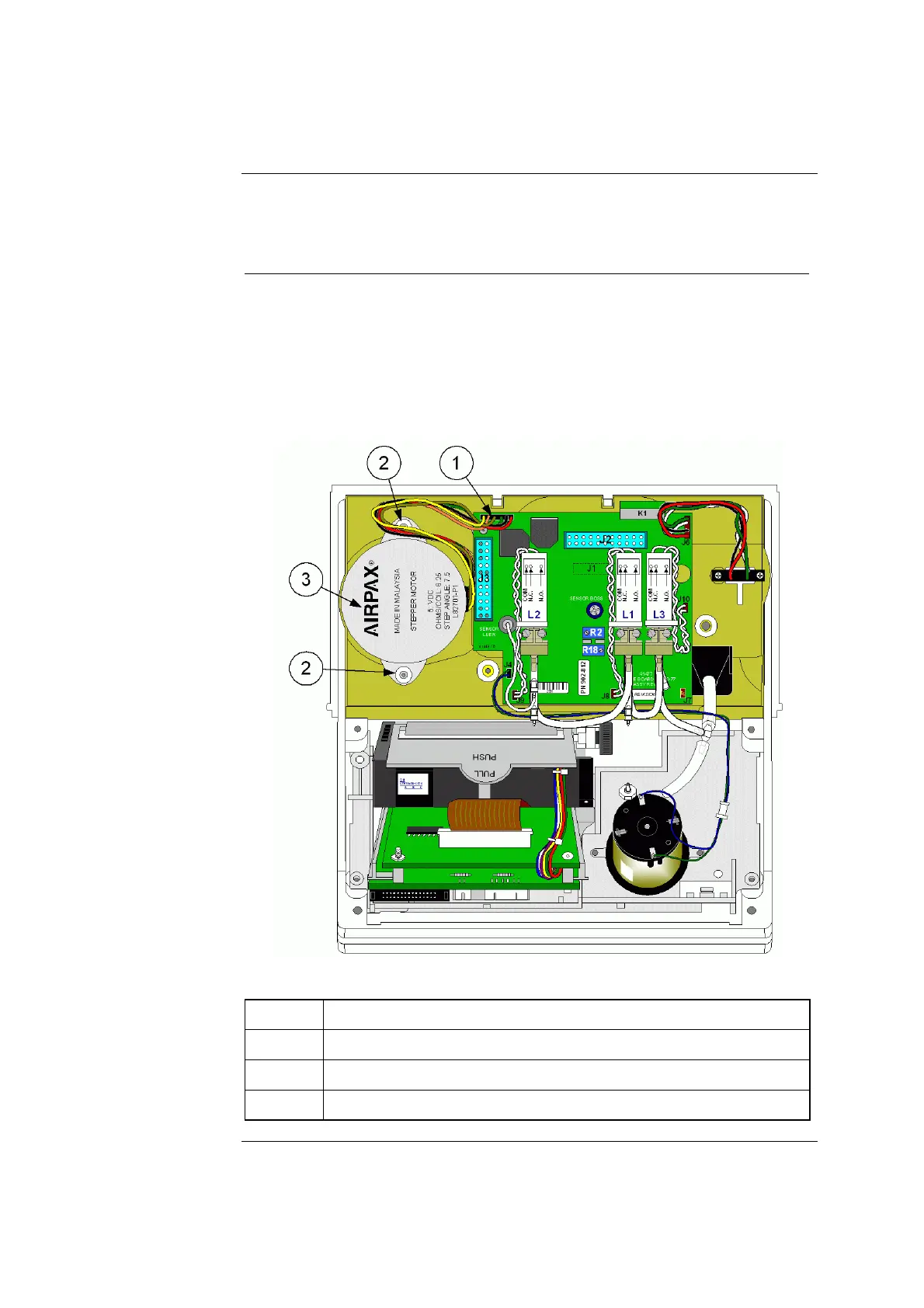

Figure 5-14
Part Function
1. Roller pump cable connection
2. Roller pump screws
3. Roller pump motor
Rev. F 5-21
