Chapter 5: Dismantling ABL77 Service Manual
Electronics Module, Continued
Electronics
module
Follow these steps to remove the electronics module.
Step Action
1.
Remove the upper module.
2.
Remove the lower module.
3.
Remove five screws from the rear panel using a 5/64” Allen wrench
(see Figure 5-24).
4.
Slide the electronics module from the main housing, pulling all cables
through the vertical slots in the main housing.

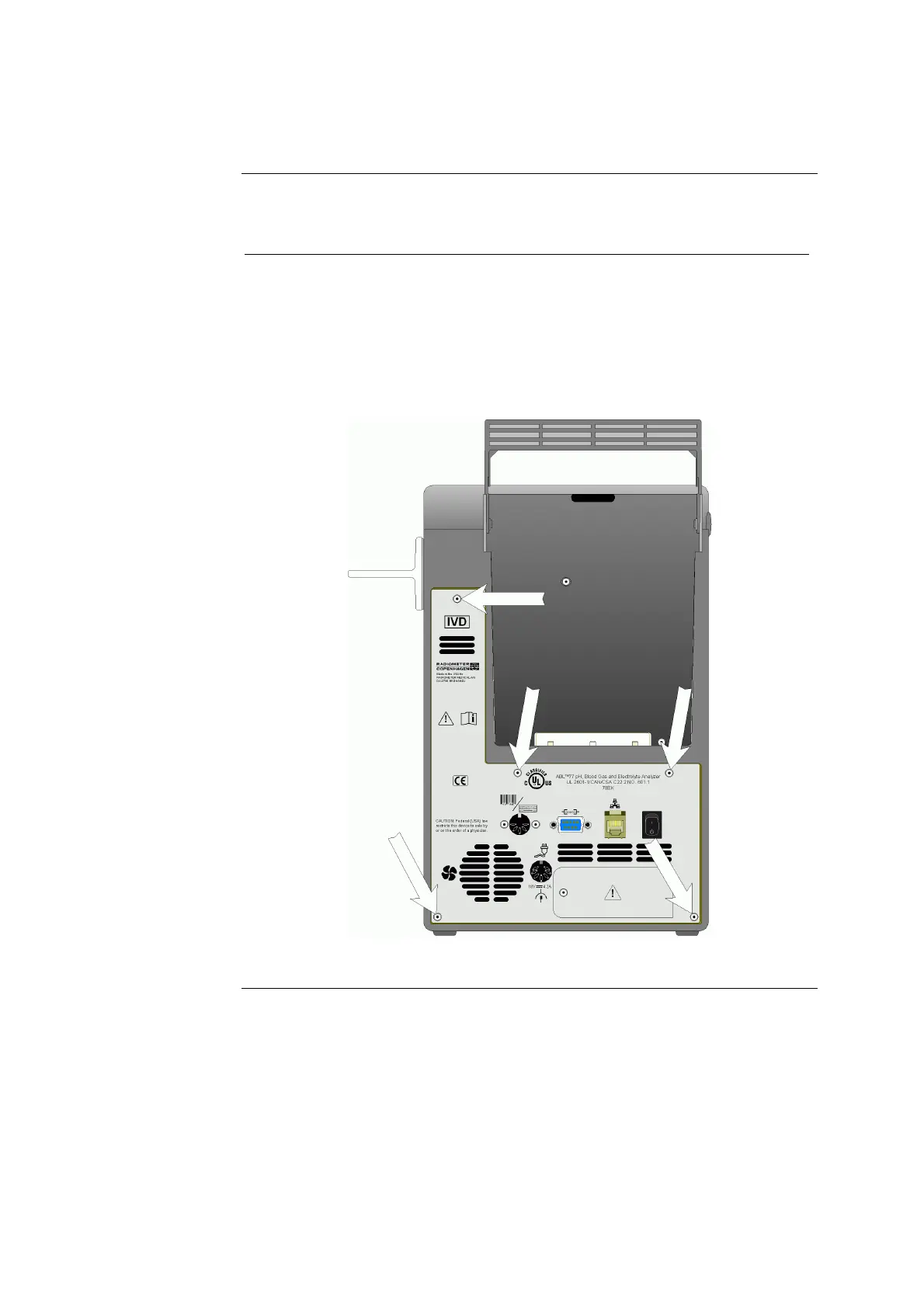

Figure 5-24
