ABL77 Service Manual Chapter 5: Dismantling
Analog Board, Continued
Analog board
(continued)

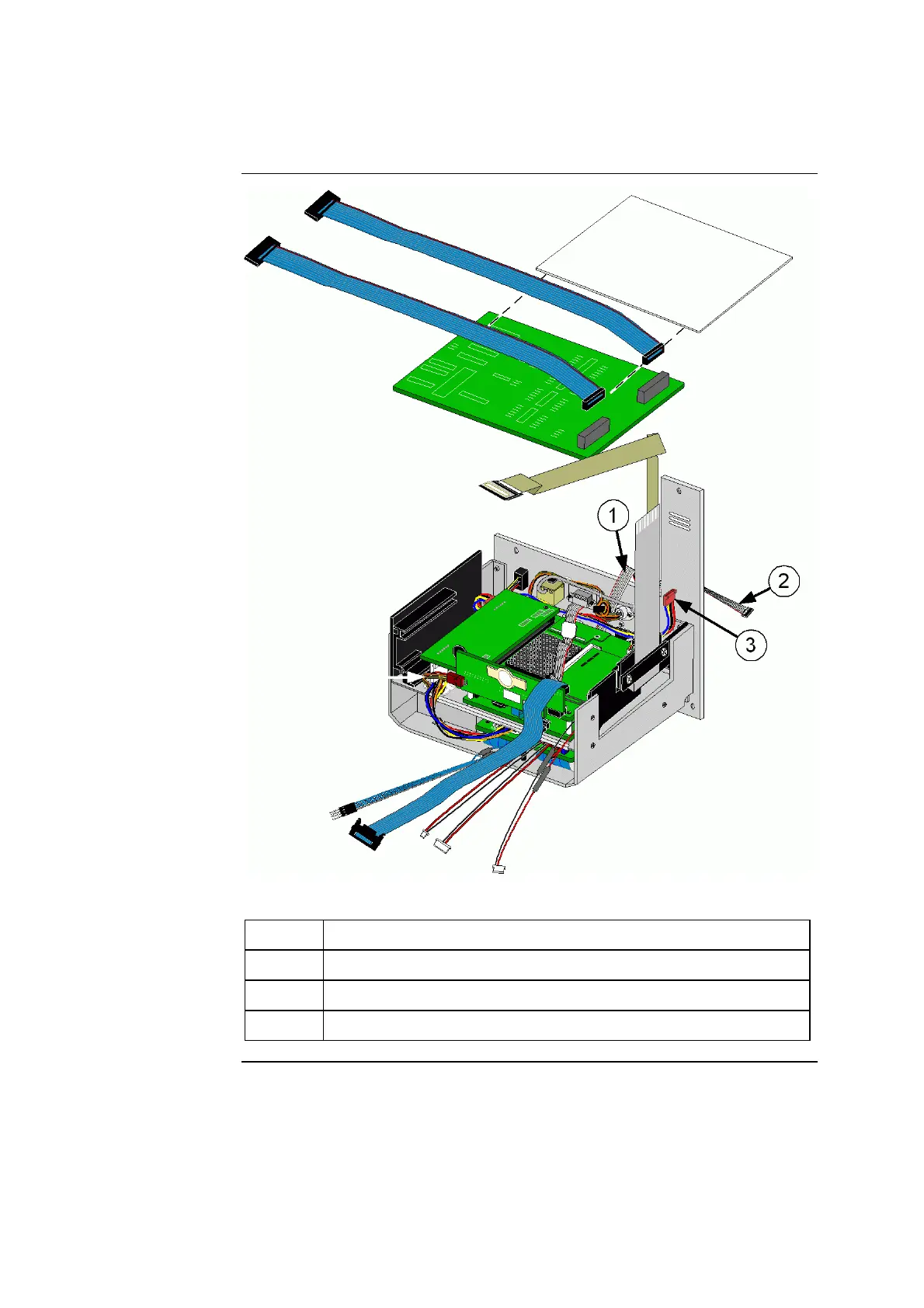

Figure 5-25
Part Function
1. Battery control board to analog board cable
2. CPU board to analog board cable
3. Power distribution board to analog board cable
Rev. F 5-39
