RADIOMETER ABL 77 Series User Manual

Chapter 2: Analyzer Description ABL77 Service Manual
Calibration, Continued
Calibration-
phase 1
• During the first phase of the calibration process, the roller wheel is activated
along with valves 1 and 3. This flushes Cal2 solution through the sensor cassette
measuring chamber (see Figure 2-1).
• A measurement is then made on this solution.
• The waste pump is also activated to transport residual flush solution to the waste
pouch.

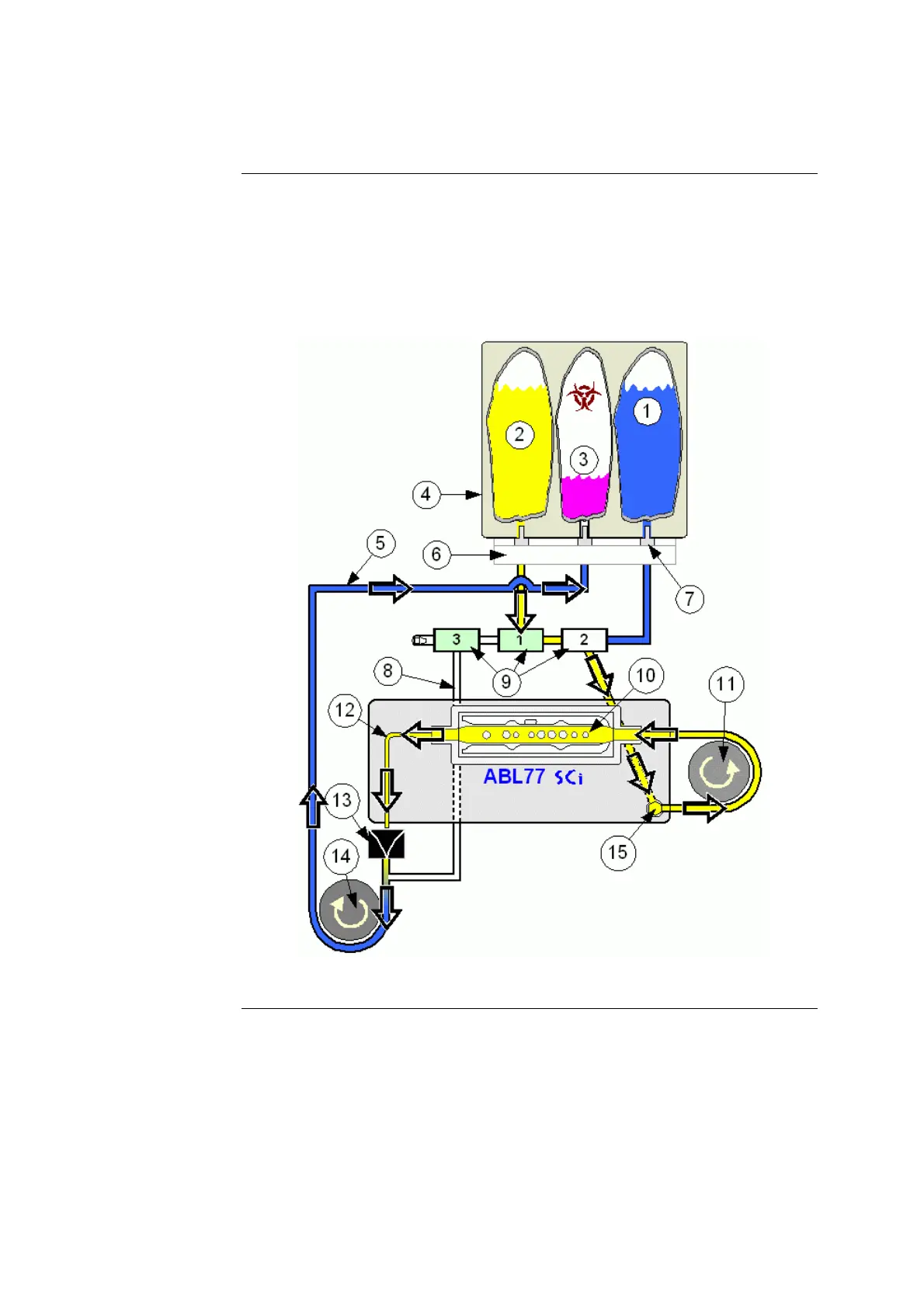

Figure 2-1
Continued on next page
2-6 Rev. F
