ABL77 Service Manual Chapter 6: Replacements
Valve Board Tubing, Continued
Replacing the
tubing
(continued)
Step Action
14.
Connect the Cal1 port tubing from the manifold to the adapter on the
tubing connected to the N.C. port of valve L2
15.
Connect the Cal2 port tubing from the manifold to the adapter on the
tubing connected to the N.C. port of valve L1. The Cal1 and Cal2 port
tubes will cross one over the other.
16.
Connect the waste port tubing from the manifold to the bulkhead
connector (item 1 in figure 6-15) on the printer chassis.
17.
Connect the valve board to the electronics module with the sensor and
I/O cables
18.
Test the tubing connections following the procedure in Chapter 4,
Testing the Valve Connections.

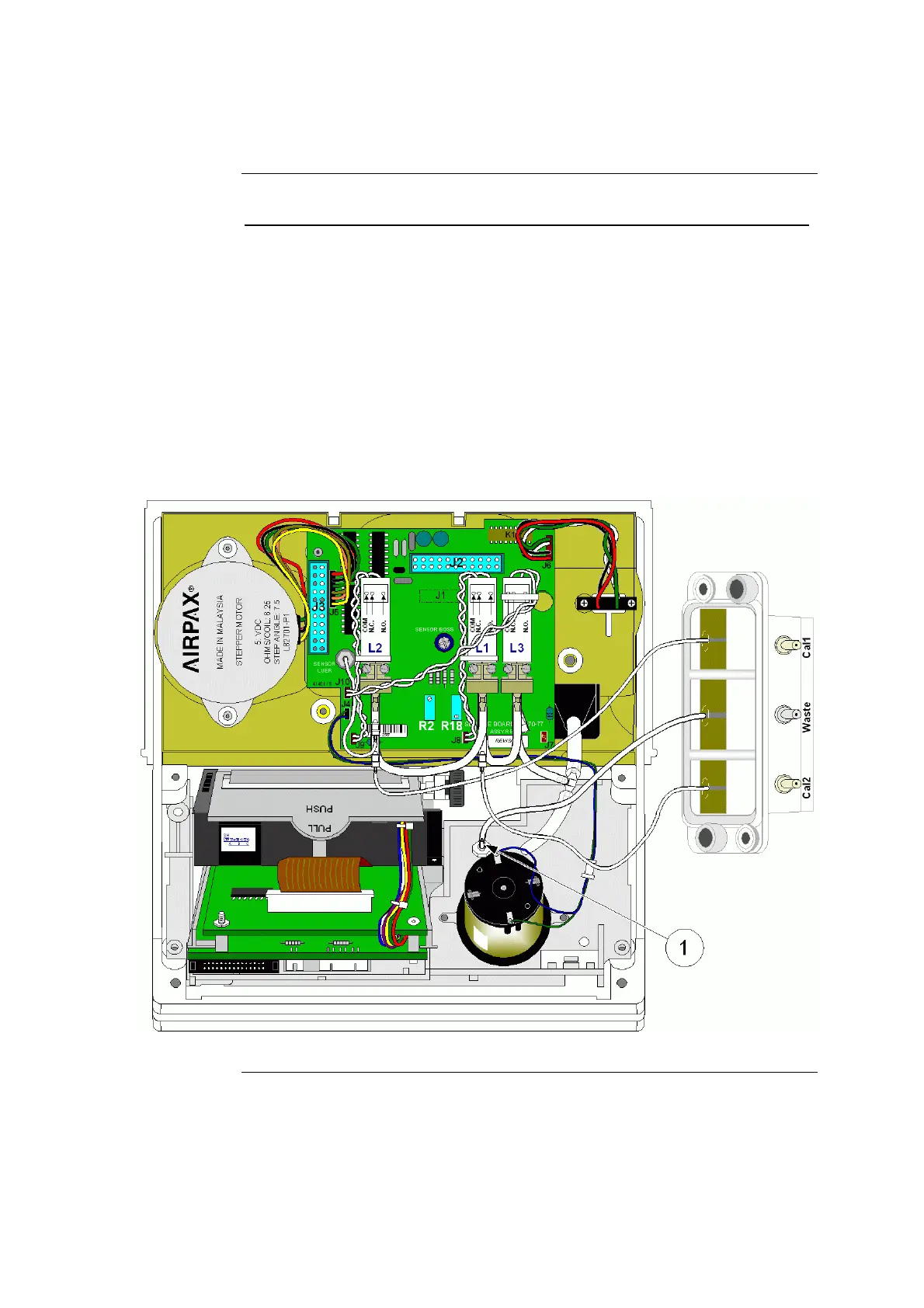

Figure 6-16
Rev. F 6-25
