Calibration, Continued
Calibration –
phase 2
• During the second phase of the calibration, the roller wheel is activated along
with valves 2 and 3. This flushes Cal1 solution through the sensor cassette
measuring chamber (see Figure 2-2).
• A measurement is made on this solution.
• The waste pump is also activated to transport residual flush solution to the waste
pouch.

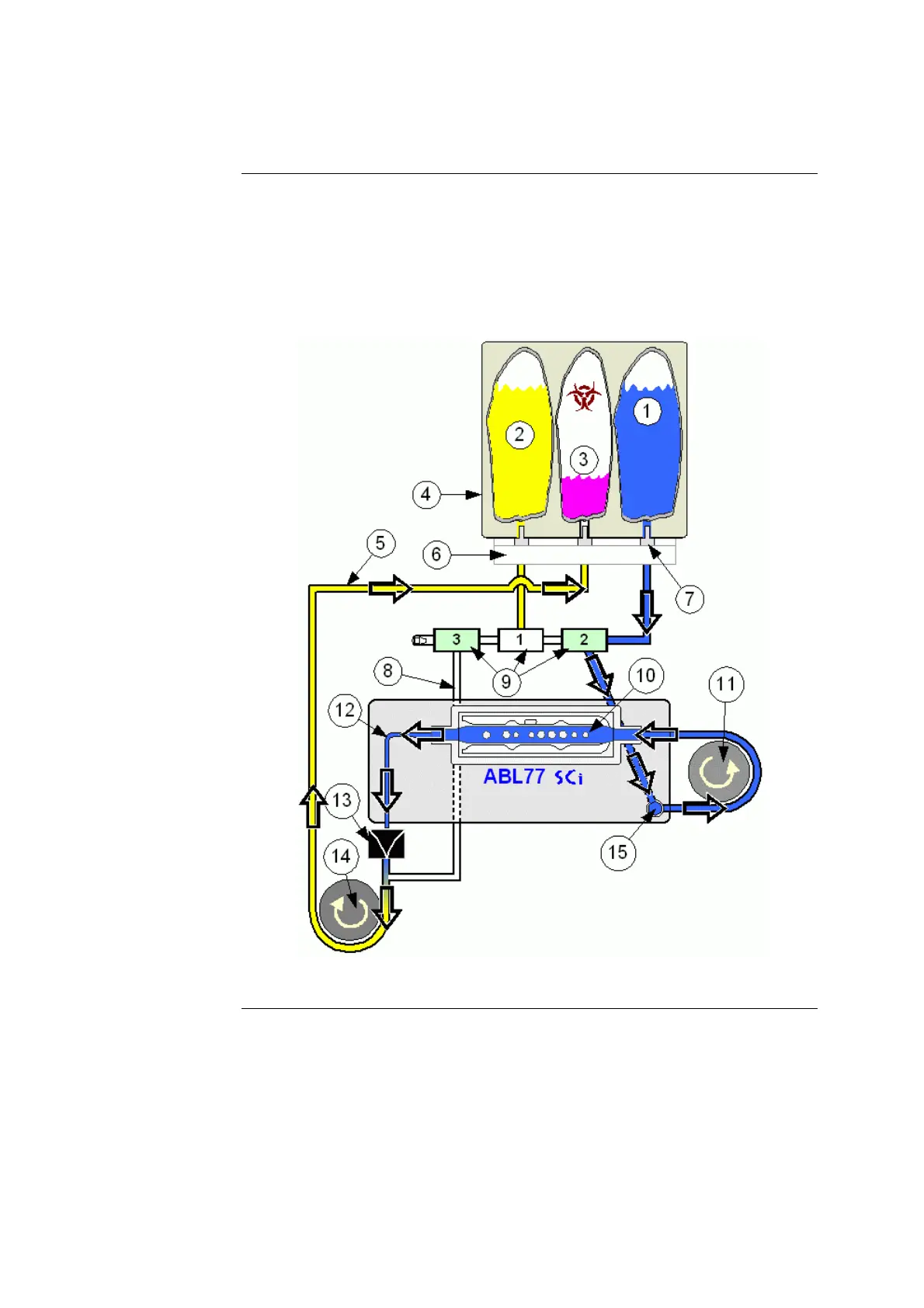

Figure 2-2
