ABL77 Service Manual Chapter 6: Replacements
LCD Display Cable, Continued
LCD display
cable
(continued)
Step Action
6.
Hold the new LCD display cable from the non-connector end of the
cable and with the colored strip facing up.
7.
Route the cable through the slot in the right-hand board guide attached
to the electronics shelf and then under the cable clamp that attaches to
the board guide.

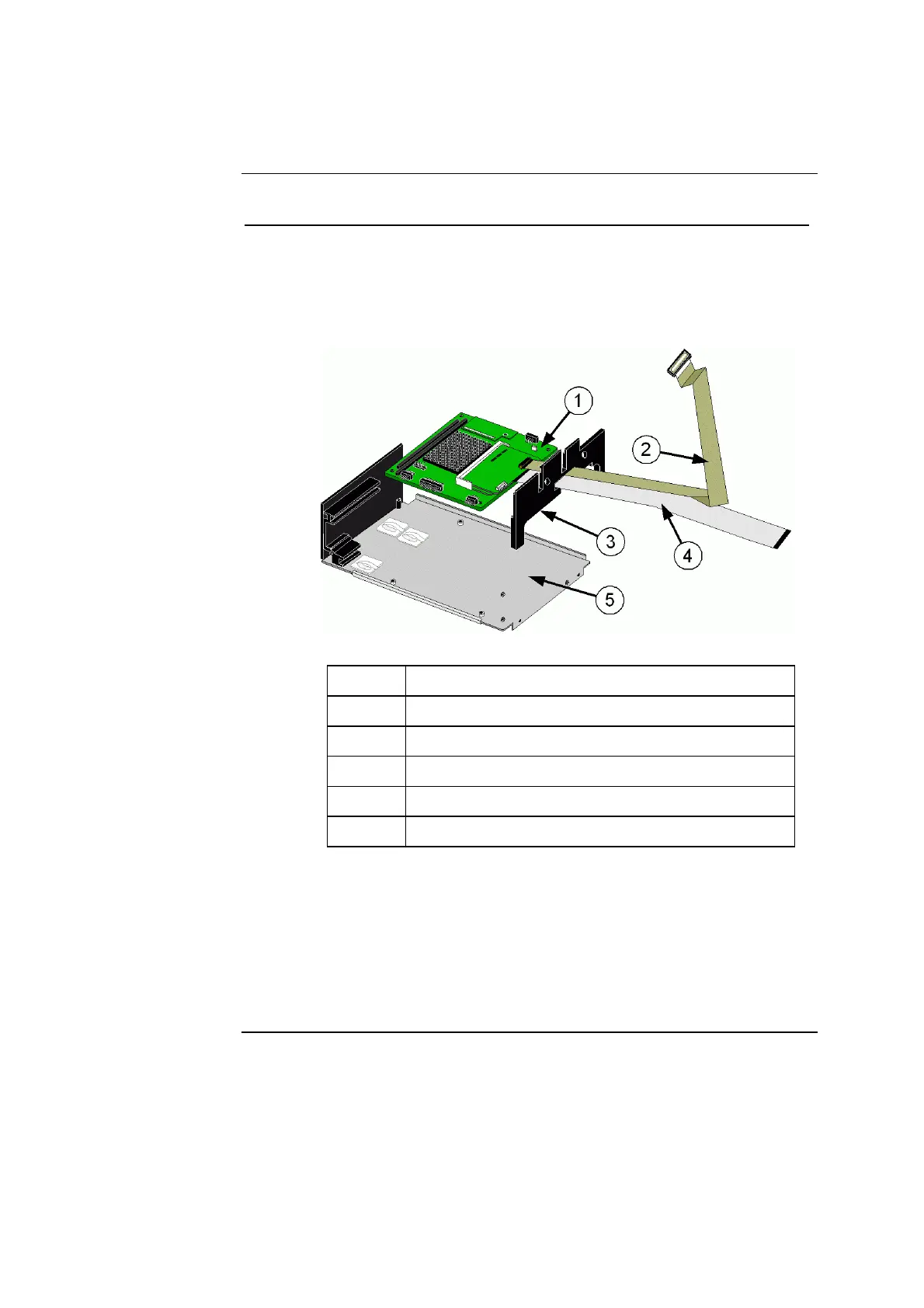

Figure 6-22
Item Description
1
CPU board
2
LCD display cable
3
Right-hand board guide
4
Disk drive cable
5
Electronics shelf
8.
Place the end of the cable in the cable connector as far as it will go.
9.
Push down on the locking mechanism to secure the cable in place.
10.
Gently fold the disk drive and LCD adapter cables up and secure them
behind the cable clamp.
11.
Re-assemble the analyzer starting with the electronics module.
Rev. F 6-39
