ABL77 Service Manual Chapter 6: Replacements
Backlight Inverter Cable, Continued
Backlight
inverter cable
(continued)
Step Action
5.
Route the new backlight inverter cable along the inside of the right
hand board guide and out the front of the electronics module (item 1
in figure 6-24).
6.
Re-assemble the analyzer starting with the electronics module.

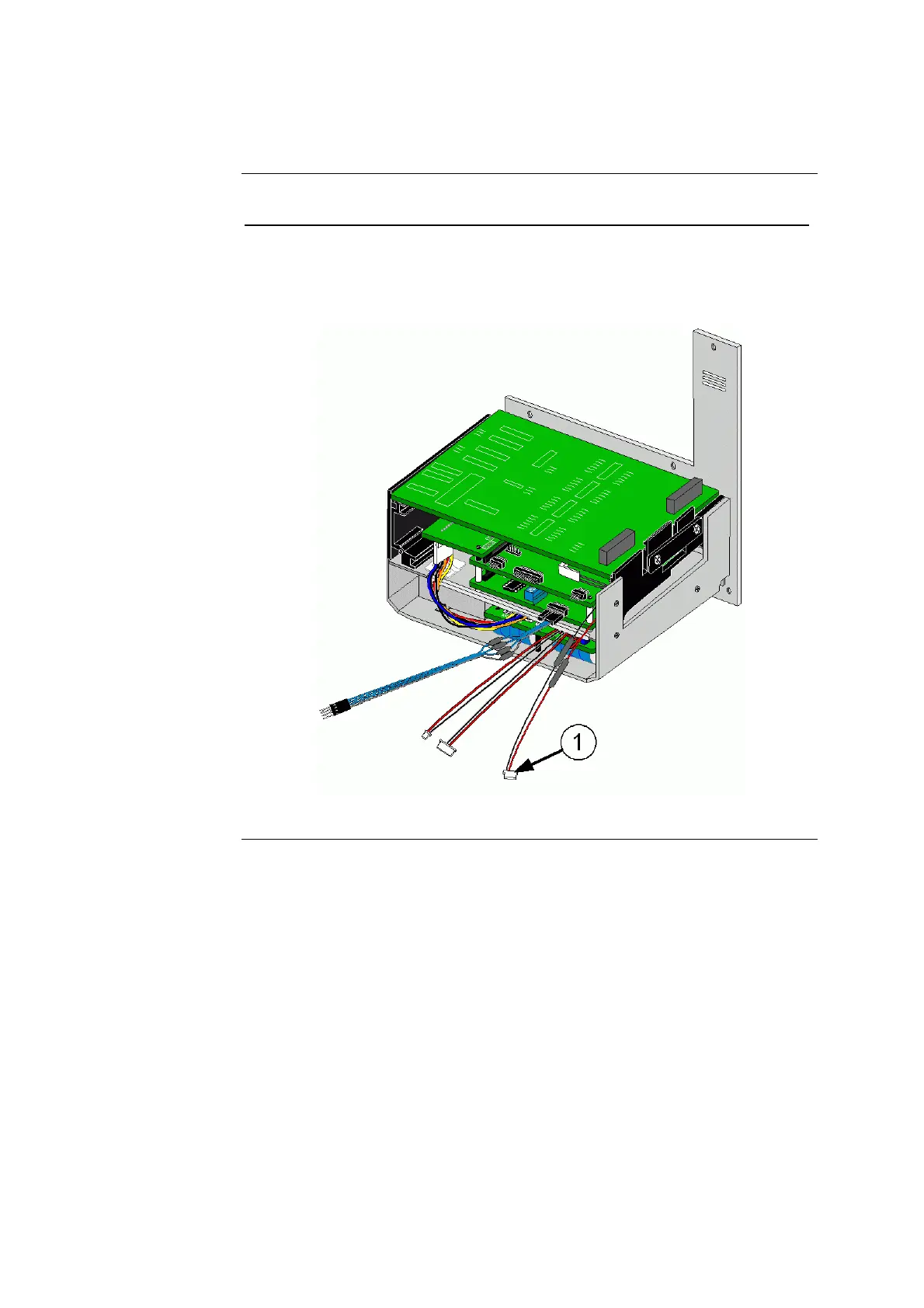

Figure 6-24
