ABL77 Service Manual Chapter 6: Replacements
A/D Cable – Analog Board to Battery Control Board,
Continued
Introduction
(continued)
Step Action

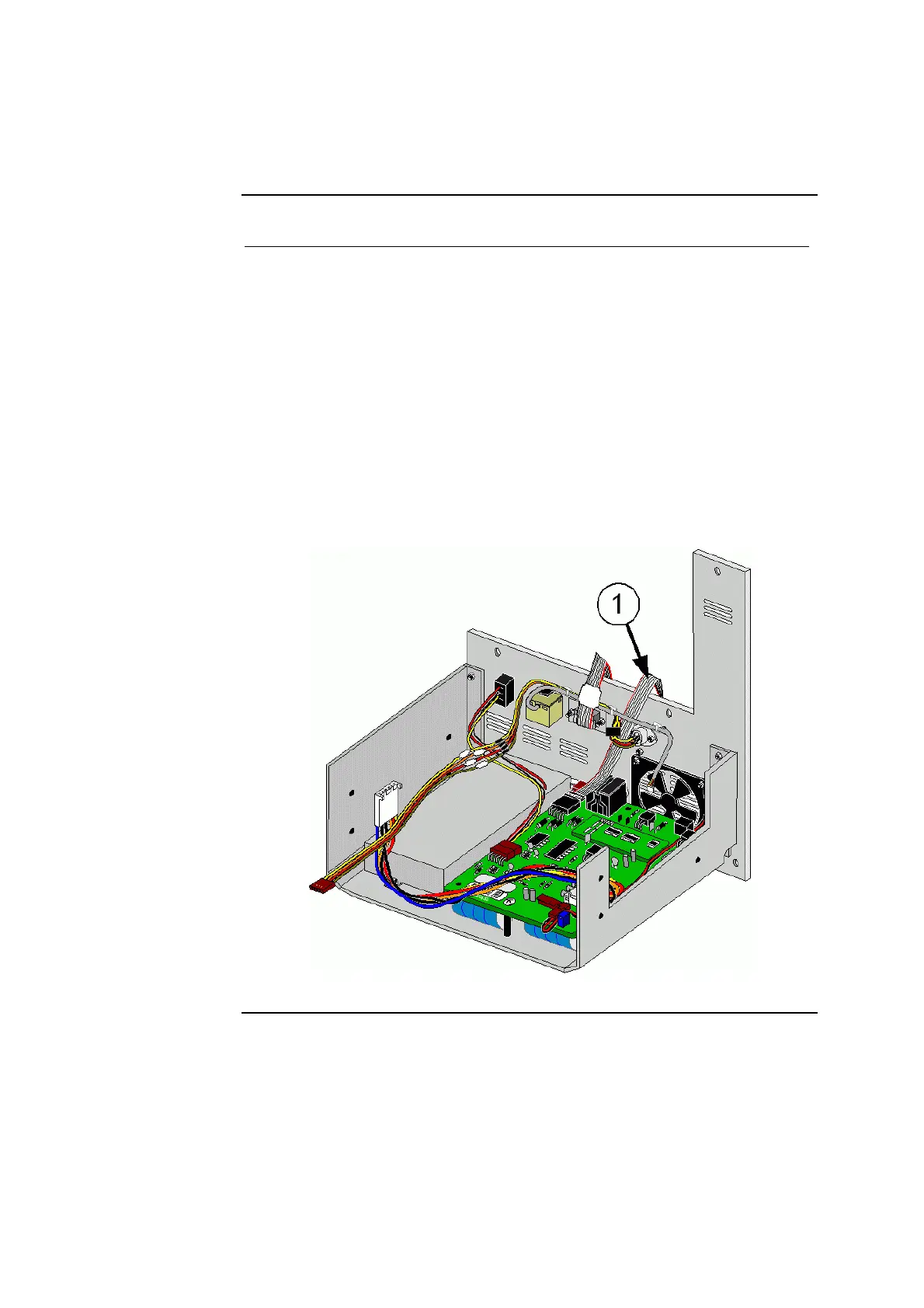

7. Connect the new A/D cable (item 1 in figure 6-32) to the left rear of
the battery control board.
8.
Re-install the electronics shelf with four 5/64” Allen screws.
9.
Re-install the Ethernet cable (636-438) into the white connector in the
upper right corner of the CPU.
10.
Re-install the COM1 cable (636-445) into the connector on the front
right of the CPU with the red strip on the right. Pull excess cable out
between the interface board and the cable connector so the cable lays
flat on the CPU.
11.
Assure all cables lie flat on top of the CPU.
12.
Re-install the analog board into the electronics module.
13.
Re-assembly the analyzer starting with the electronics module.
Figure 6-32
Rev. F 6-51
