ABL77 Service Manual Chapter 7: Re-Assembly

Battery Control Board, Continued

Battery control

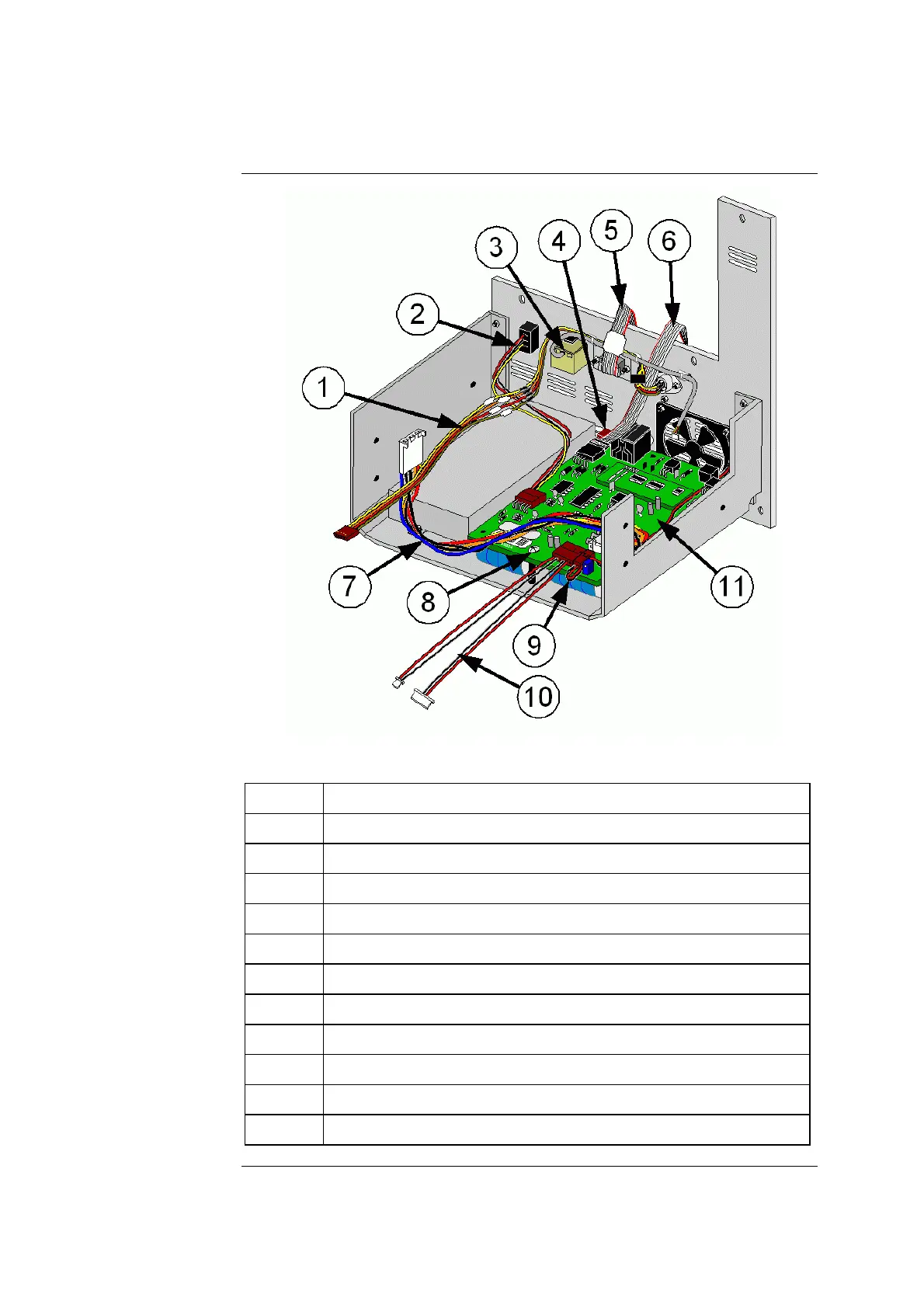

board diagram

Figure 7-26

Part Function

1. Barcode reader/keyboard cable

2. Power switch cable

3. Ethernet cable

4. Battery pack cable

5. COM1 cable

6. A/D Cable

7. Power board cable

8. Battery control board screws and washers

9. Fan assembly cable

10. Printer power cable

11. Battery control board

Rev. F 7-41
