ABL77 Service Manual Chapter 7: Re-Assembly

Electronic Boards, Continued

Electronic

boards

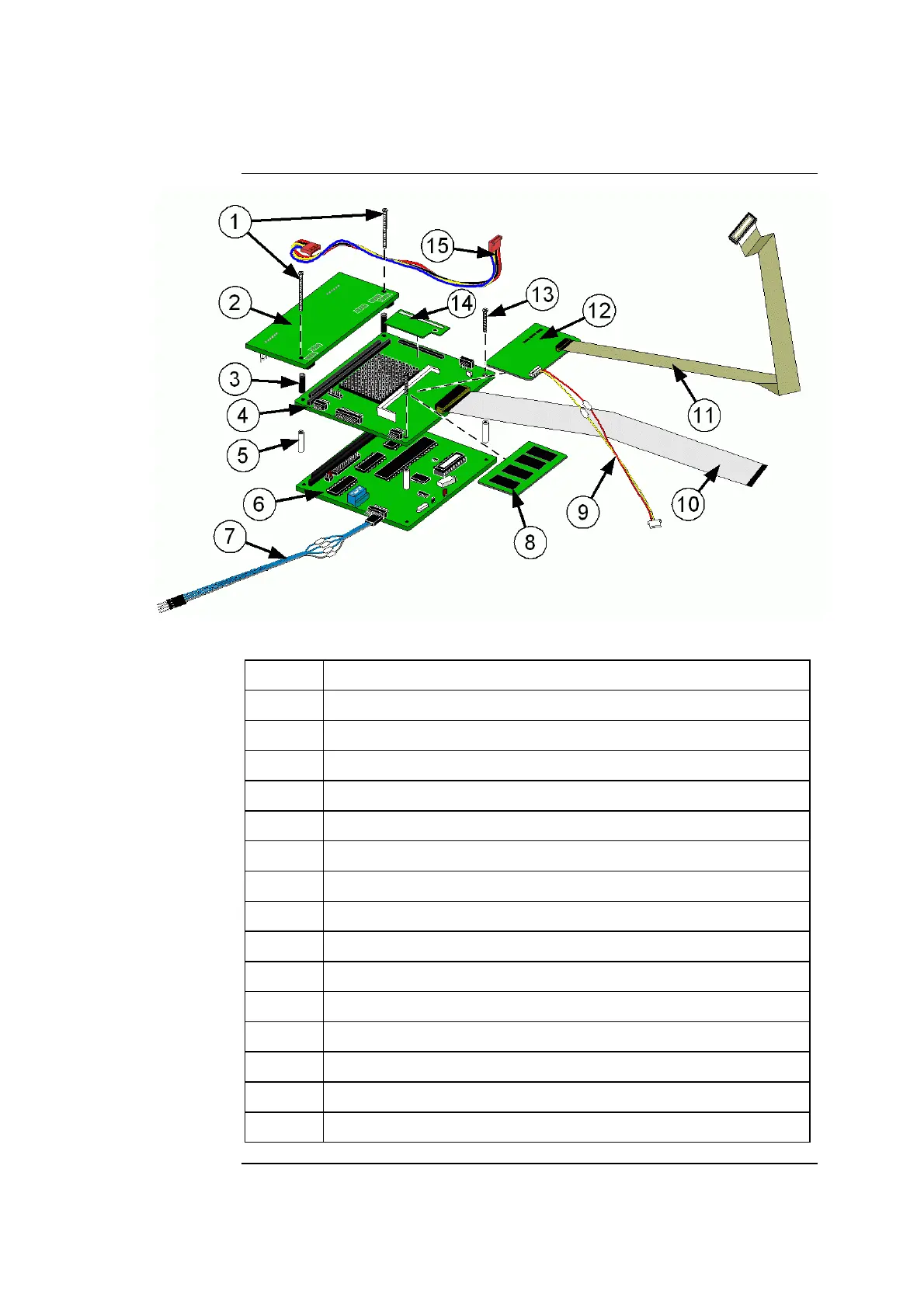

exploded

diagram

Figure 7-29

Part Function

1. Power board screws (2)

2. Power distribution board

3. Power board standoffs (2)

4. CPU board

5. CPU board standoffs (4)

6. Touch screen controller board

7. Touch screen controller cable

8. Memory module

9. Backlight inverter cable

10. Disk drive cable

11. LCD adapter cable

12. LCD adapter board

13. CPU board screws (4)

14. ChipDisk

15. Analog power cable
