ABL77 Service Manual Chapter 7: Re-Assembly
Interface Board, Continued

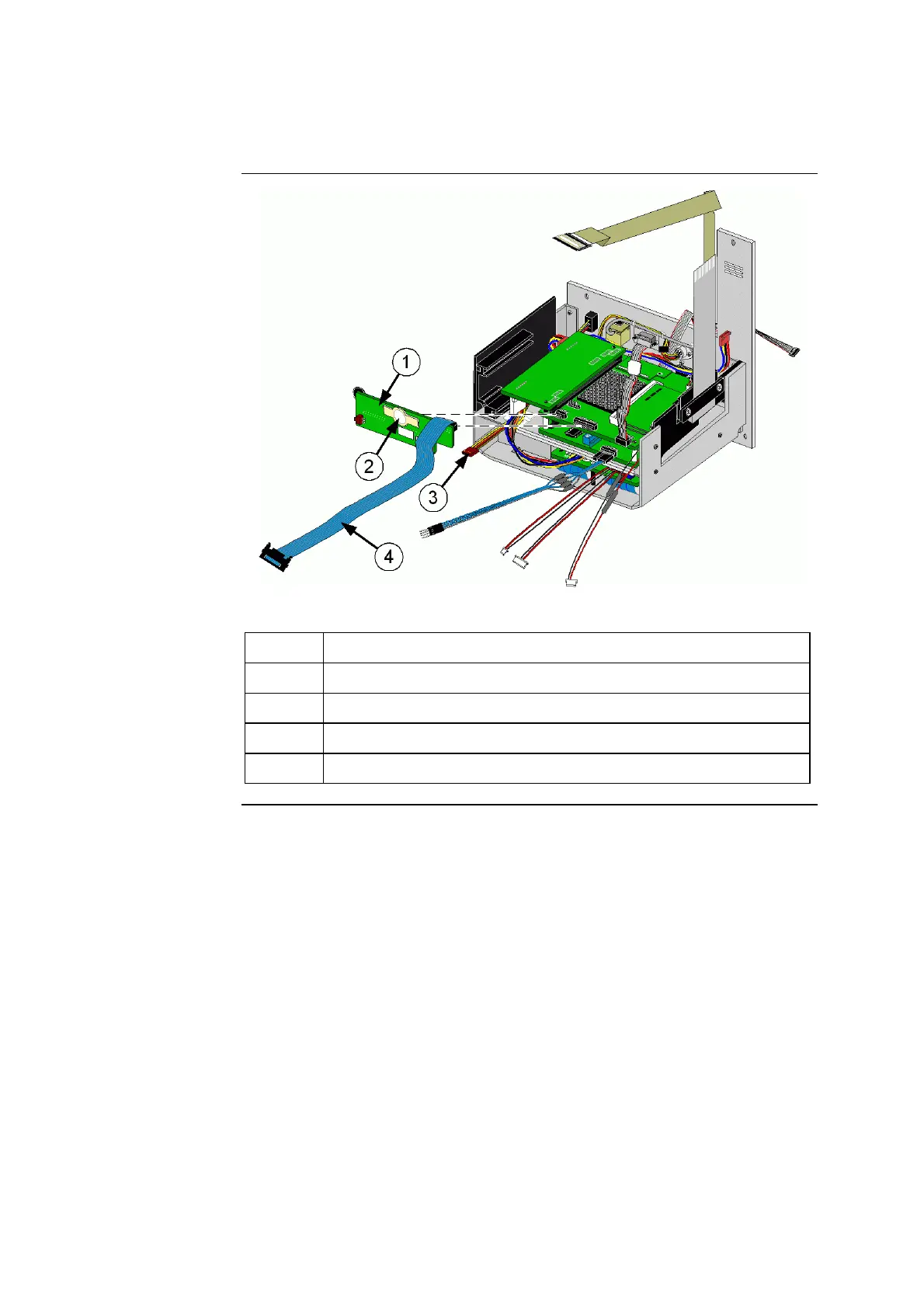

Interface board
install diagram
Figure 7-32
Part Function
1. Interface board
2. Coin cell battery
3. Barcode reader / keyboard cable
4. Printer data cable
Rev. F 7-57
