Chapter 2: Analyzer Description ABL77 Service Manual
Sample Analysis, Continued
Analysis –
sample flush

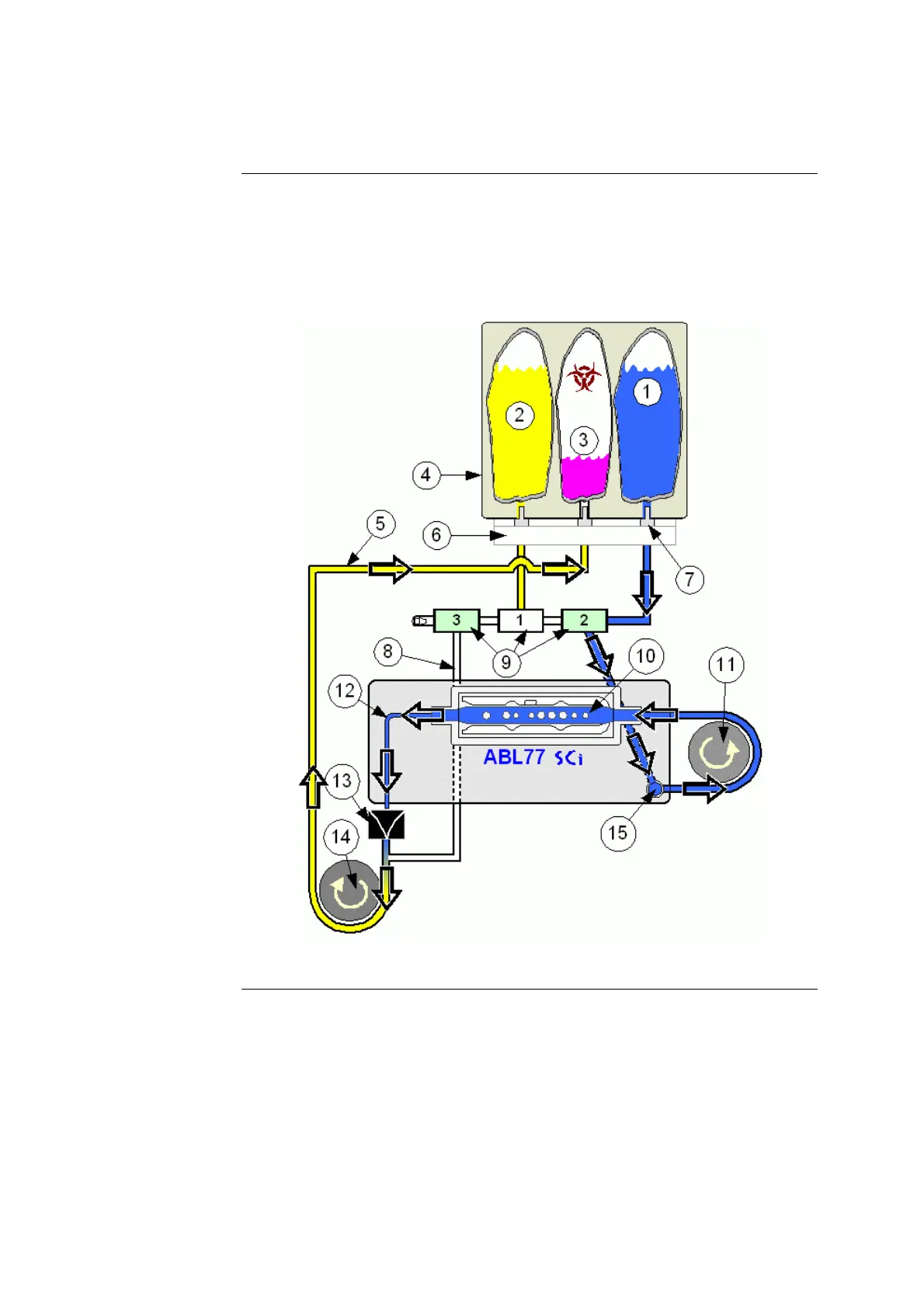

• Following the sample measurement, the roller wheel is activated along with
valves 2 and 3 to flush cal 1 solution through the sensor cassette (see Figure 2-5).
• A measurement is performed using this cal solution prior to final results being
displayed ensuring that no drift has occurred.
• The waste pump is activated to transport the flush solution to the waste pouch.
Figure 2-5
Continued on next page
2-16 Rev. F
