ABL77 Service Manual Chapter 7: Re-Assembly

Electronics Module, Continued

Main housing

cable assemblies

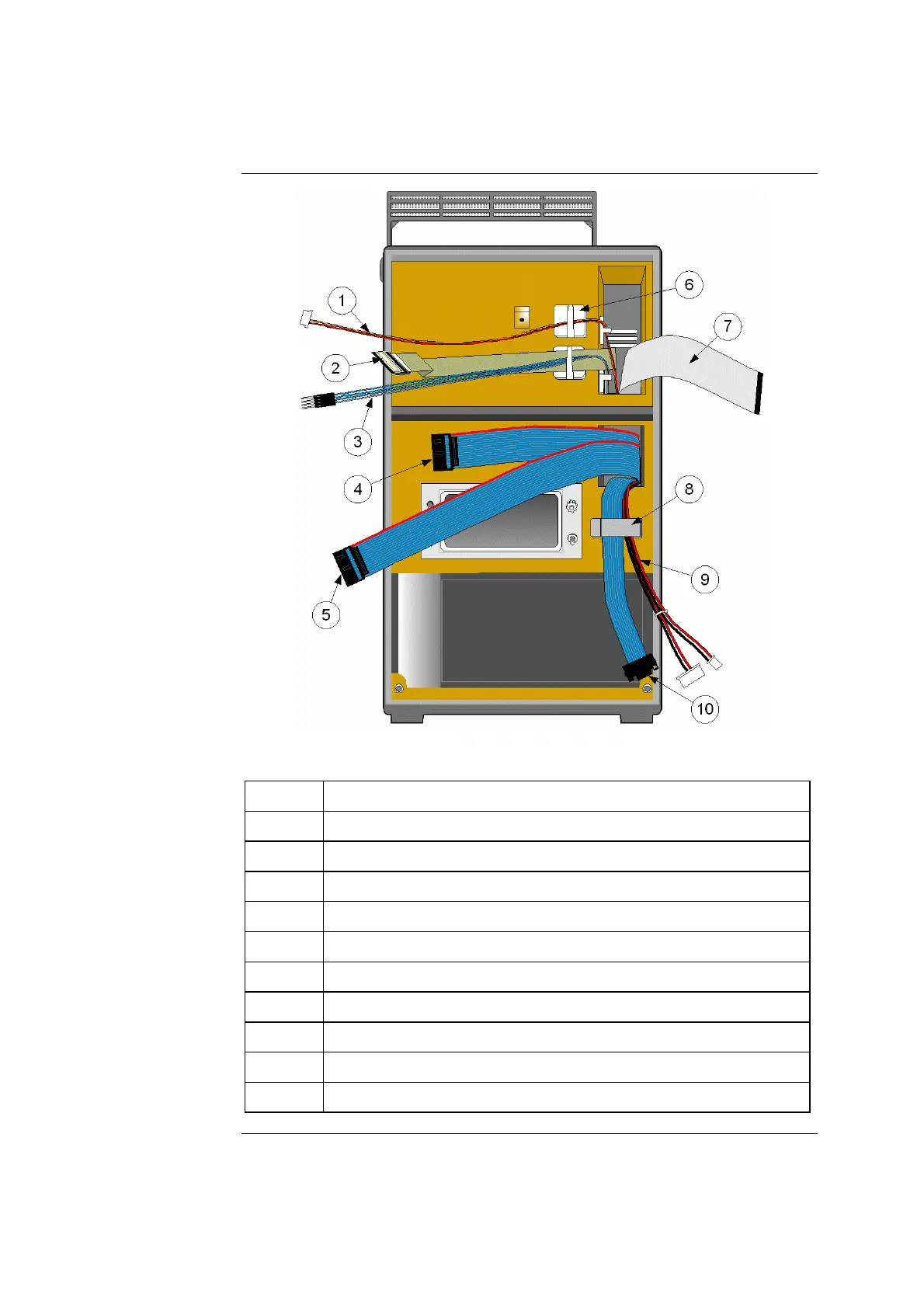

diagram

Figure 7-36

Part Function

1. Backlight inverter cable

2. LCD display cable

3. Touch screen cable

4. I/O cable

5. Sensor cable

6. Cable clamp

7. Disk drive cable

8. Printer cables clamp

9. Printer power cables

10. Printer data cable
