RADIOMETER ABL 77 Series - Page 39

Chapter 2: Analyzer Description ABL77 Service Manual
Module Descriptions, Continued
ABL77 block
diagram

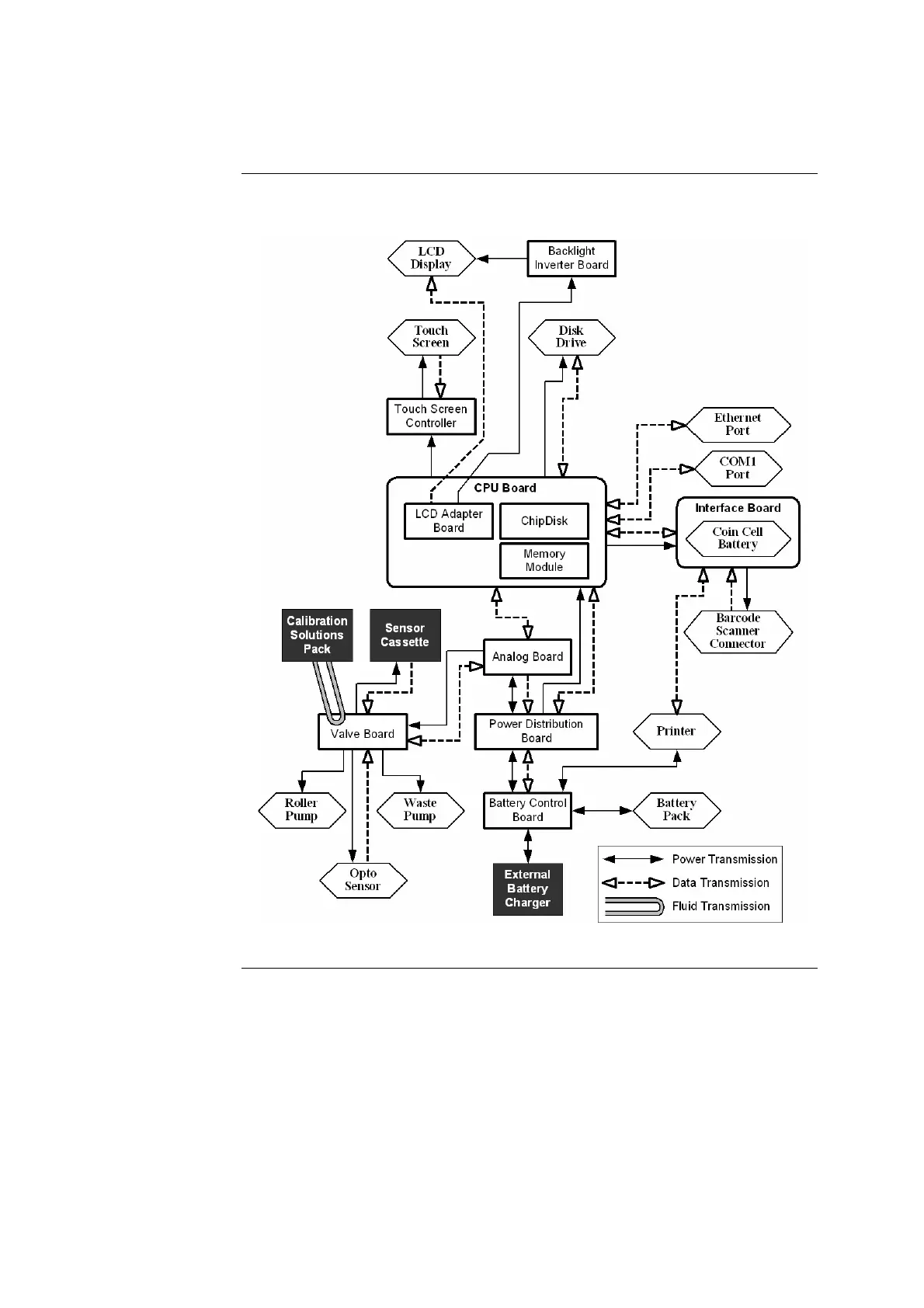

Figure 2-14 displays the inter-connection of primary and secondary components of
the ABL77 analyzer.
Figure 2-14
2-24 Rev. F
