ABL77 Service Manual Chapter 2: Analyzer Description

Module Descriptions, Continued

Diagrams

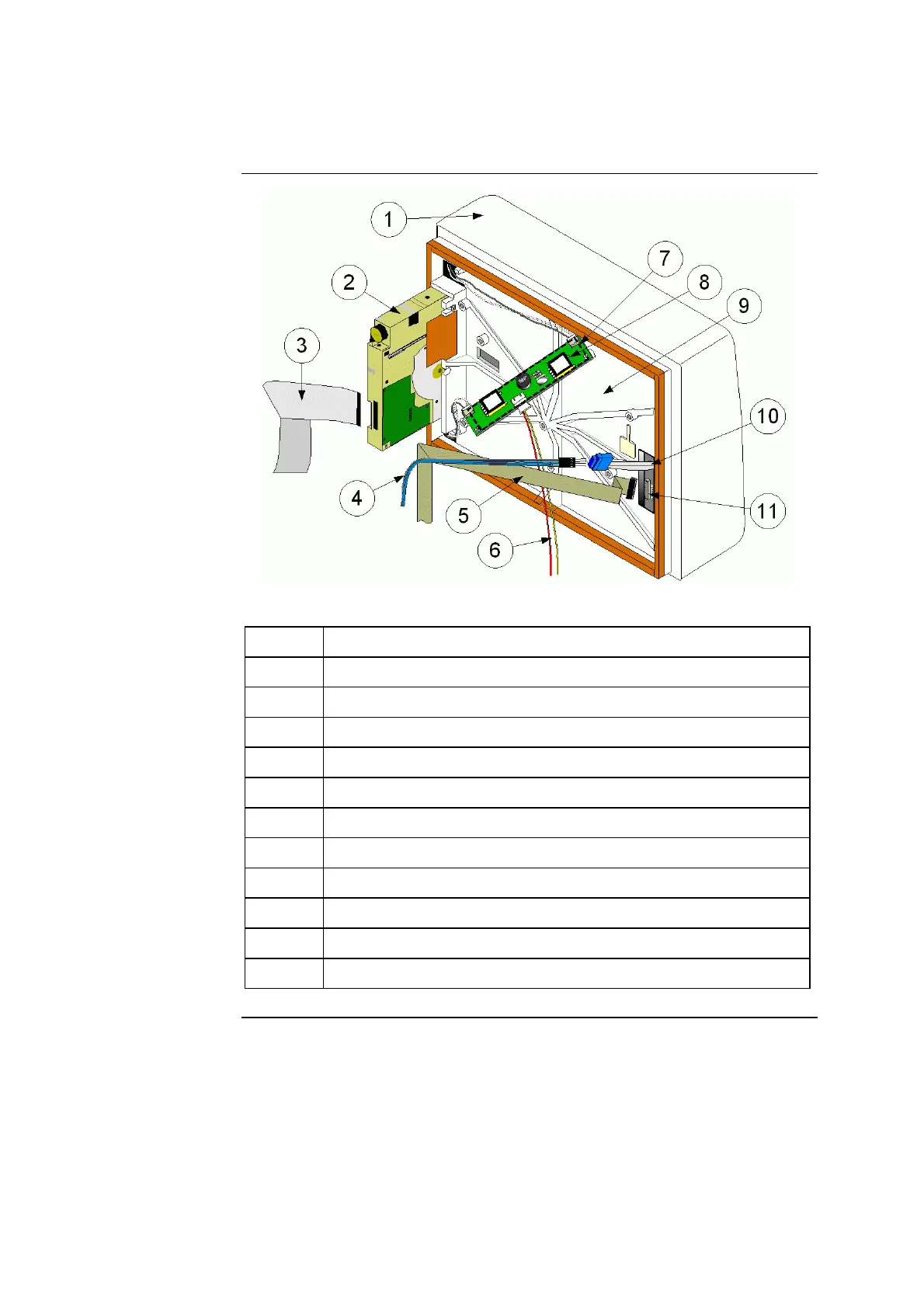

Figure 2-15

Part Function

1. Upper housing

2. Disk drive

3. Disk drive cable

4. Touch screen cable

5. LCD display cable

6. Backlight inverter cable

7. Backlight inverter

8. Insulating tape

9. Housing bracket

10. Touch screen panel

11. LCD display

Continued on next page
